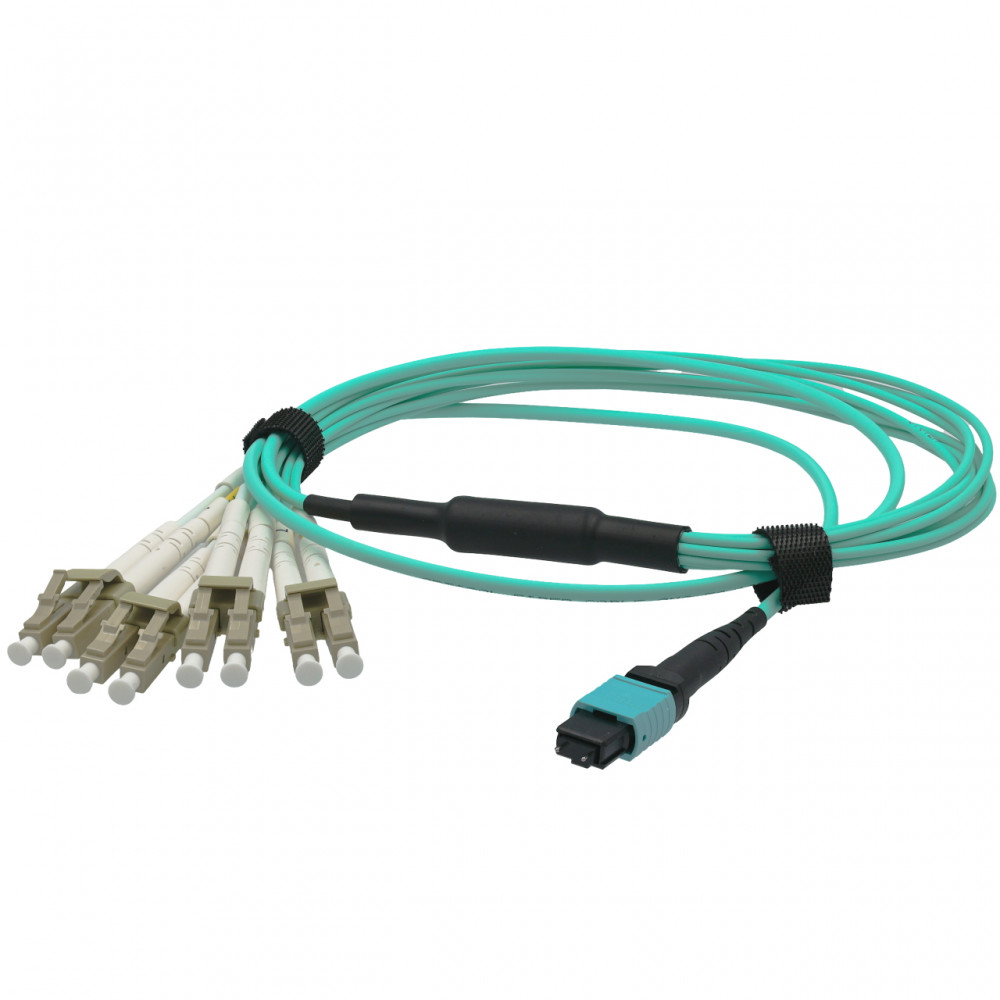

MPO to 8x LC Multimode OM3 50/125um-1 Meter Splitter
Fiber optic cable assembly is the best choice for high-density optical networks. It is specially designed for high-speed fiber optic channel networks, data centers. This 8-fiber cable assembly is used to connect between QSFP ports and (4) SFP ports.
Features

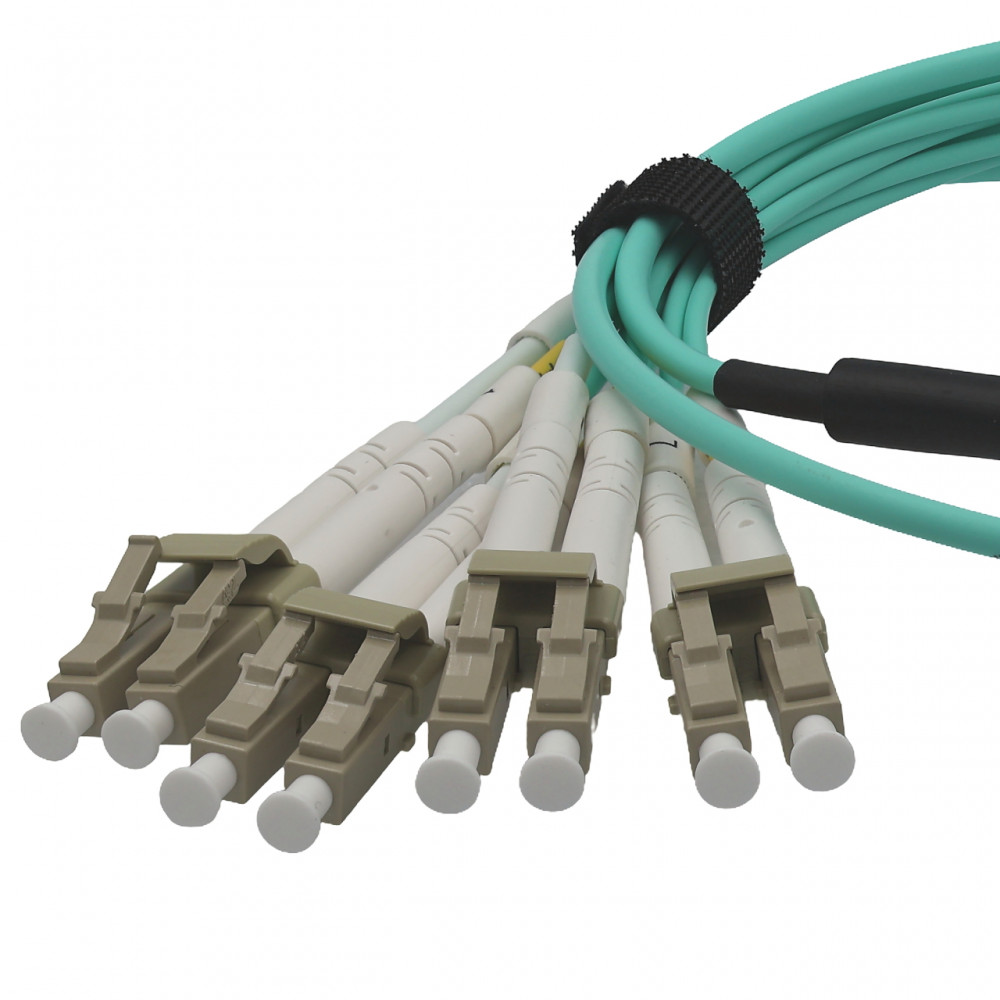

- MPO to 8x LC (LC drop length for 0.5 meter).

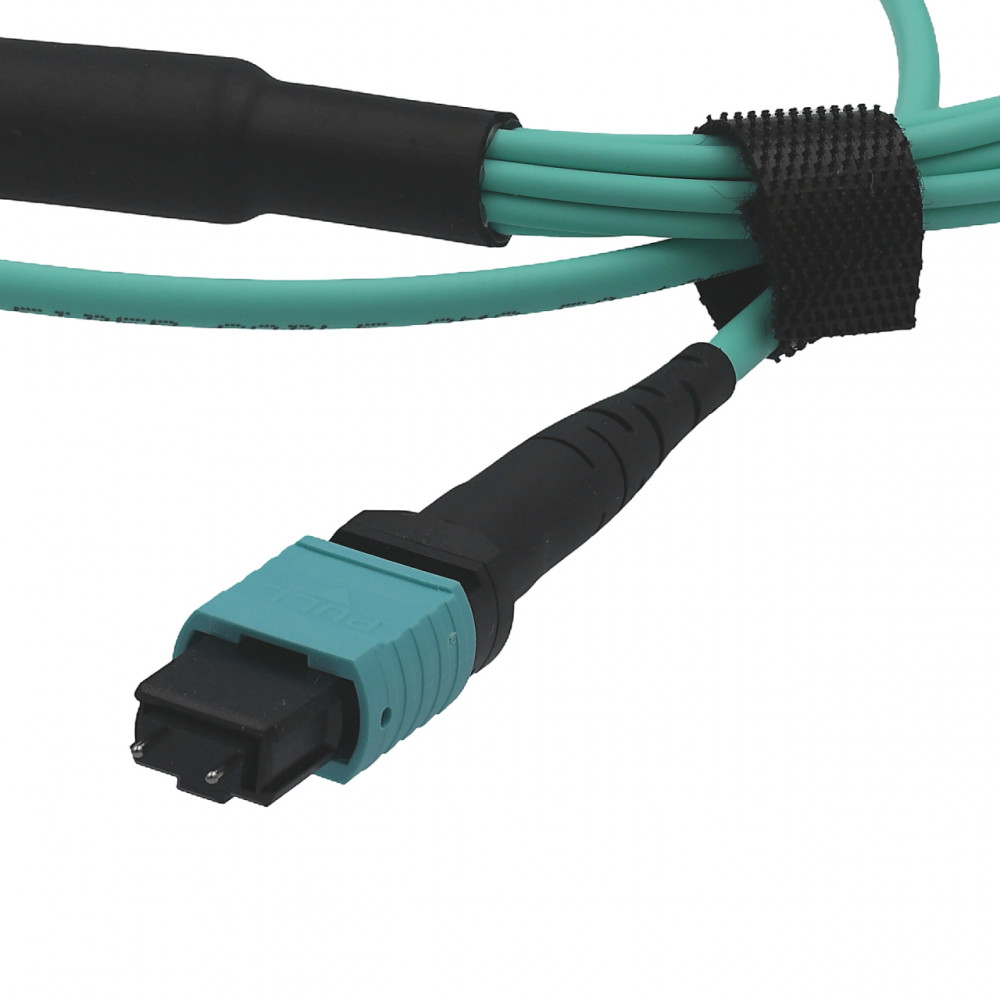

- MPO Male (with pins)
- Fiber type OM3 (50/125 um)
- Polarity Type B
- Polishing type UPC
- Cable outer diameter: 3mm
- Wiring cable diameter 2mm
- Wiring: 0.5m
- Total length 1 meter
- Sheath type LSZH

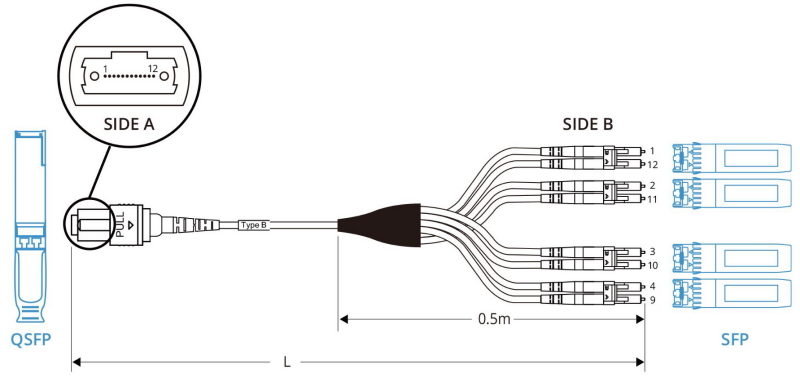

Straight connection is possible if the splitter is MPO Female (without pins).
8OM3/MPO-8LC.JPG)

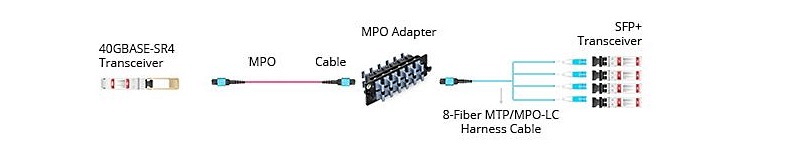

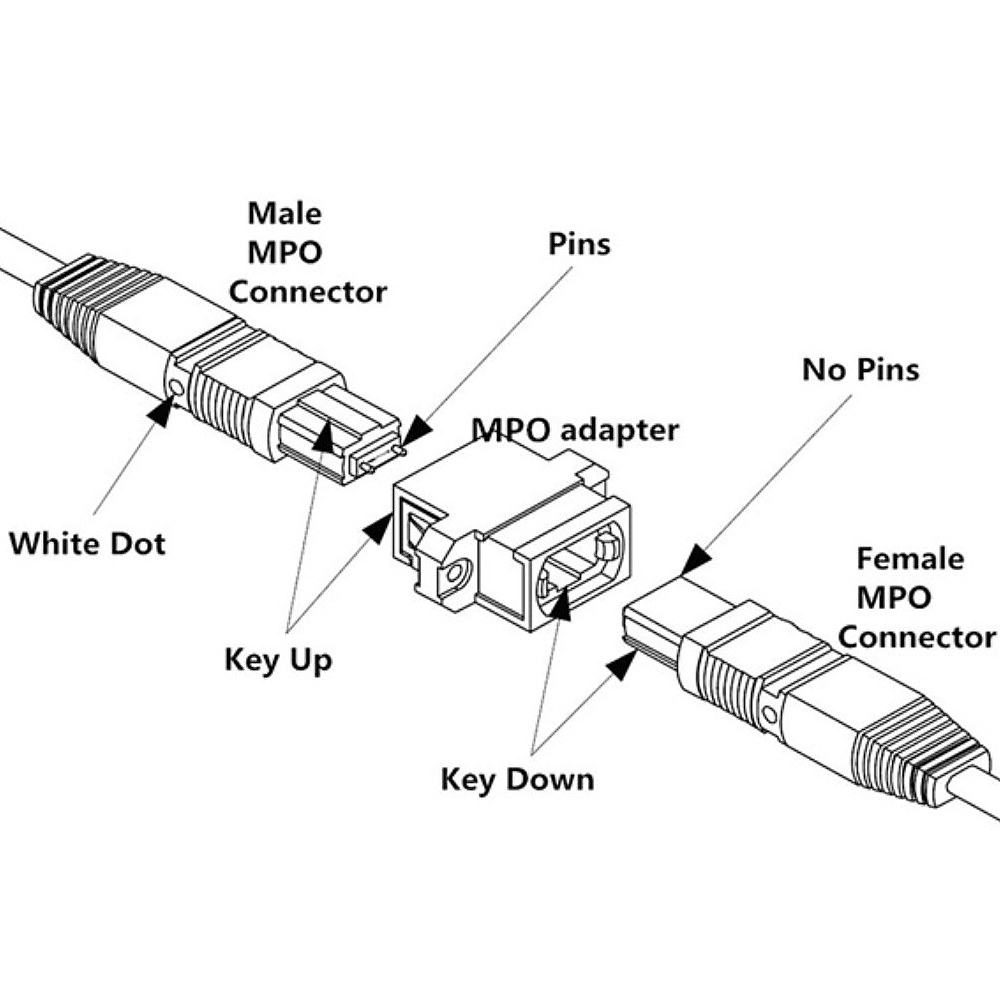

If there are pins MPO(M) on the splitter, you can use an MPO(Female)-MPO(Female) cable and connect it via an MPO adapter to the splitter.
8OM3/MPO F - MPO F - 8LC.jpg)
Reviews and questions (0)
-200x200.JPG)
8(ON)-200x200.jpg)
8(ON)-200x200.JPG)

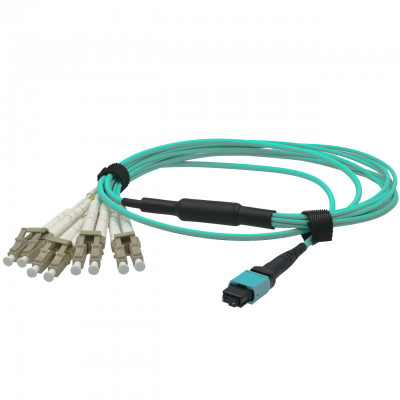

8OM3/LW-H1MPO(M)8OM3-400x400.JPG "8 Fiber MPO(M)-LC duplex MM (G50-OM3) 1м")
