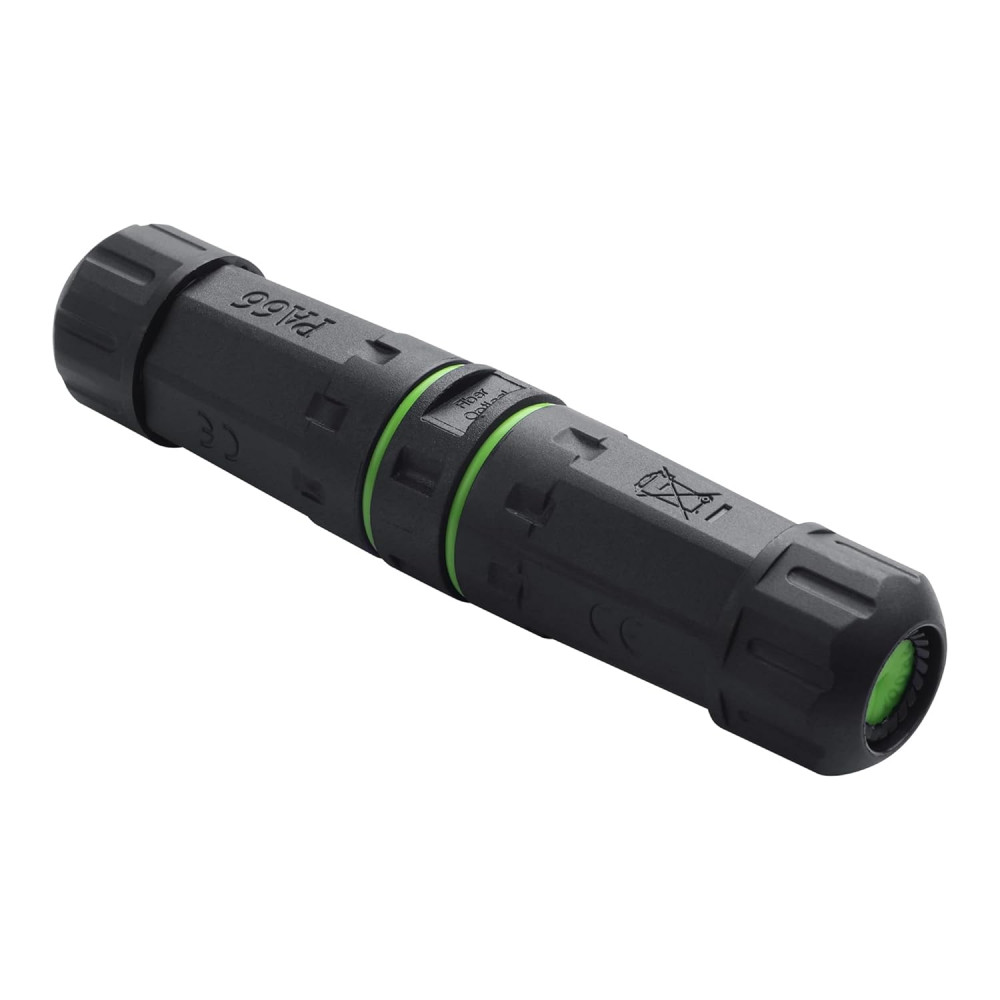

IP68 Outdoor Waterproof SC Fiber Optical Coupler SC Simplex

IP68 Waterproof SC Fiber Optical Coupler,SC Simplex Fiber Optic Cable Outdoor Waterproof Adapter for Extend Fiber Optic Cable Length Long Reach Network Connection

About this item

• SC Fiber Optic Waterproof Coupler is used to extend fiber optic cable connections by joining 2 SC cables together to protect network components from moisture, oxidation, and corrosion and to achieve high quality connections.
• This SC fiber optic waterproof connector shell is made of nylon PA66, high performance ceramic conduit is safe and reliable, using silicone ring and rubber ring to seal the water-proof performance of the product
• This waterproof fiber optic coupler can be quickly connected/disconnected and is waterproof to IP68 for effective operation in harsh environments and efficient use of cable assemblies, accepts (0-4mm) OD cables
• Note: After long-term use in a humid environment, it is necessary to regularly check the sealing of the sealing ring to prevent water from penetrating into the connector. If used in corrosive soil and humid environment, the shell will be more susceptible to corrosion. Also, do not immerse the connector in water.
• Widely used where fibre optic signal transmission is required, no tools and expertise are required for installation, plug and play, easy and fast

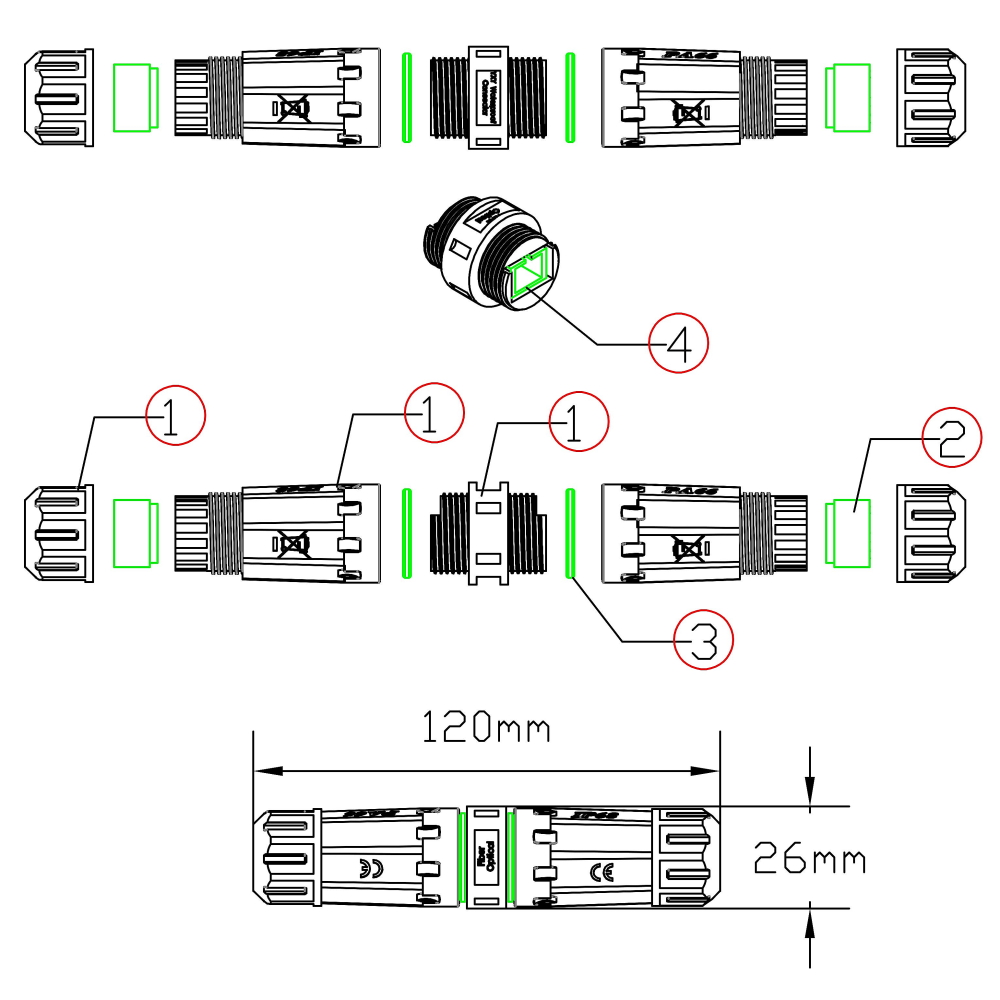

Specifications:

• Product Name: SC fiber optic waterproof connector.
• SC waterproof connectors can convert existing Ethernet connectors to be dustproof and waterproof, can be quickly connected/disconnected, and can work effectively in harsh environments and efficiently use cable assemblies.
• SC female to female waterproof connectors are suitable for extending fiber optic cable connections by connecting 2 short network cables together, thus protecting network components from moisture, dirt and bugs.
• Color: black

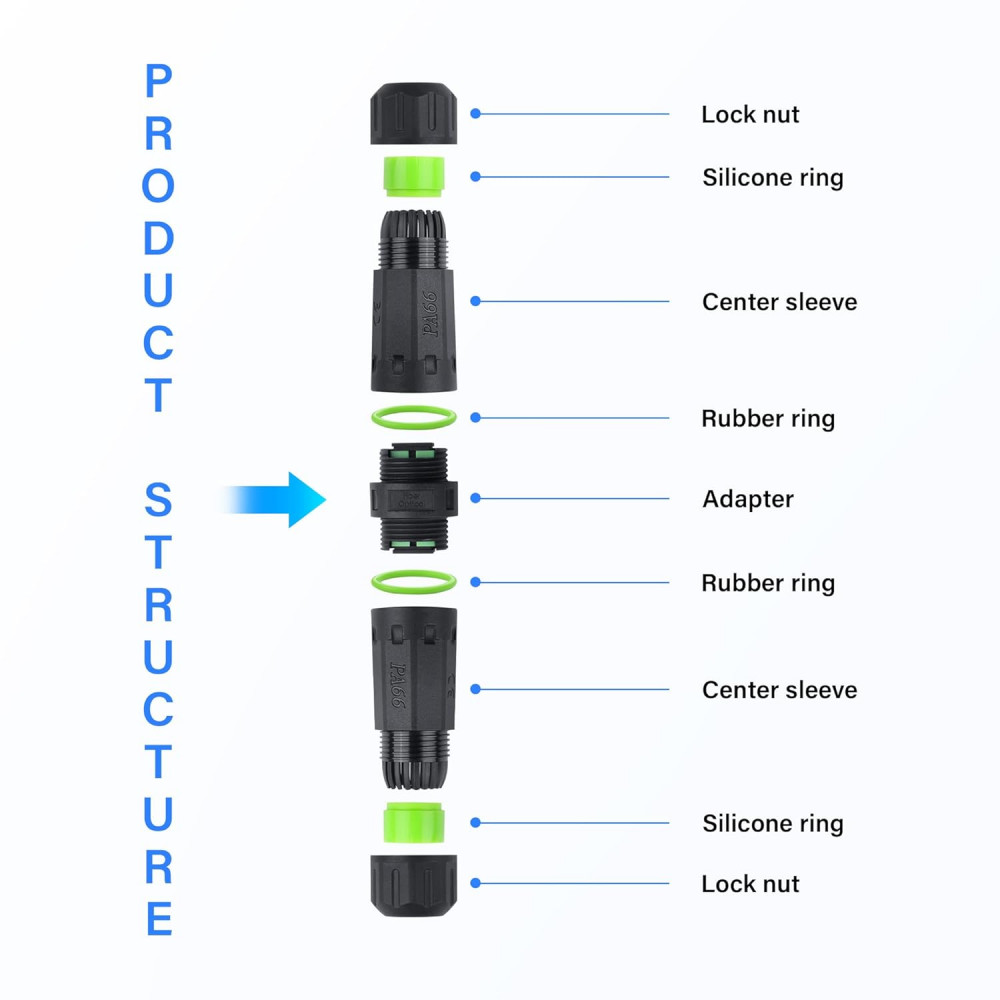

• Material: Shell nylon PA66, silicone waterproof rubber ring
• Protection grade: IP68
• Connection port: SC single mode simplex
• Operating temperature: -40 ~ 85 ℃
• Package Included:
• 1 x SC fiber optic waterproof connector

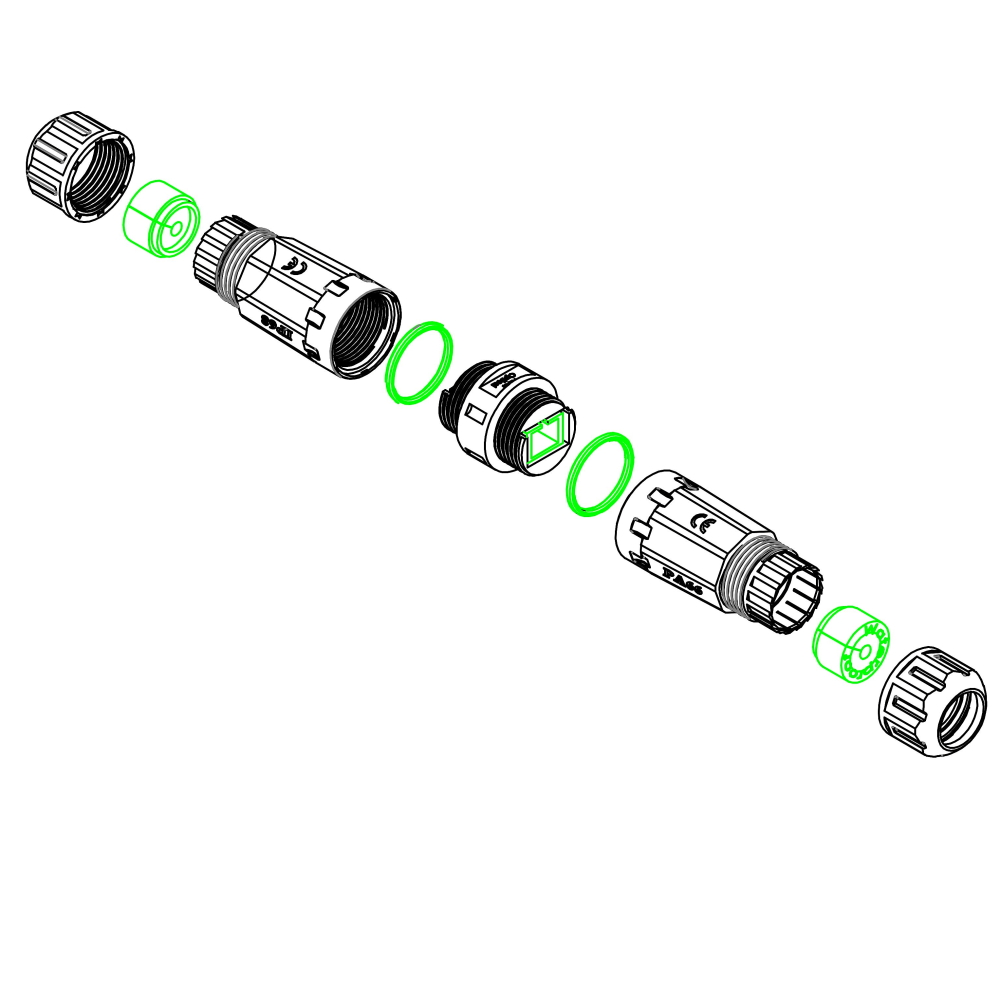

Installation steps:

1. Disassemble the product and prepare the fiber optic cable;
2. Connect the fiber optic cable in series with the middle sleeve and lock nut;
3. Insert the SC fiber optic plug into the fiber optic jack of the connector;
4. Connect the silicone waterproof mat to the fiber optic cable;
5. Tighten the center sleeve and connector;
6. Put the silicone waterproof mat into the middle sleeve gripping clamp;
7. Put the lock nut pre-set on the fiber optic cable onto the middle sleeve and tighten it;
8. Install the other side according to the above steps;
9. Installation is complete!
