S/FTP Cat. 6A Cable, 23 AWG, LSZH (Dca) Jacket, 500 m, Blue
PrintS/FTP Cat.6A 23AWG LSZH (Dca) Cable, 500 m, Blue, CMS-SF6AO-ID5BL
Purpose
The S/FTP Category 6A cable is designed for high-speed structured cabling systems and local area networks. It is intended for fixed indoor installation in buildings, stations, facilities, and equipment in environments with increased electromagnetic interference.
The cable supports Fast Ethernet, Gigabit Ethernet, 2.5GBASE-T, 5GBASE-T, 10GBASE-T, HDBaseT, as well as PoE, PoE+, and PoE++ power delivery technologies. It is designed for operation at frequencies up to 500 MHz. [
Description
CMS-SF6AO-ID5BL is a shielded S/FTP Category 6A twisted-pair cable with 23AWG copper conductors. Each twisted pair is individually shielded with Al/PET foil, while the overall shield consists of a tinned copper braid with 31% coverage.
The outer jacket is made of LSZH material and has a nominal cable diameter of 7.0 mm. The cable complies with CPR class Dca requirements. Jacket color: blue.

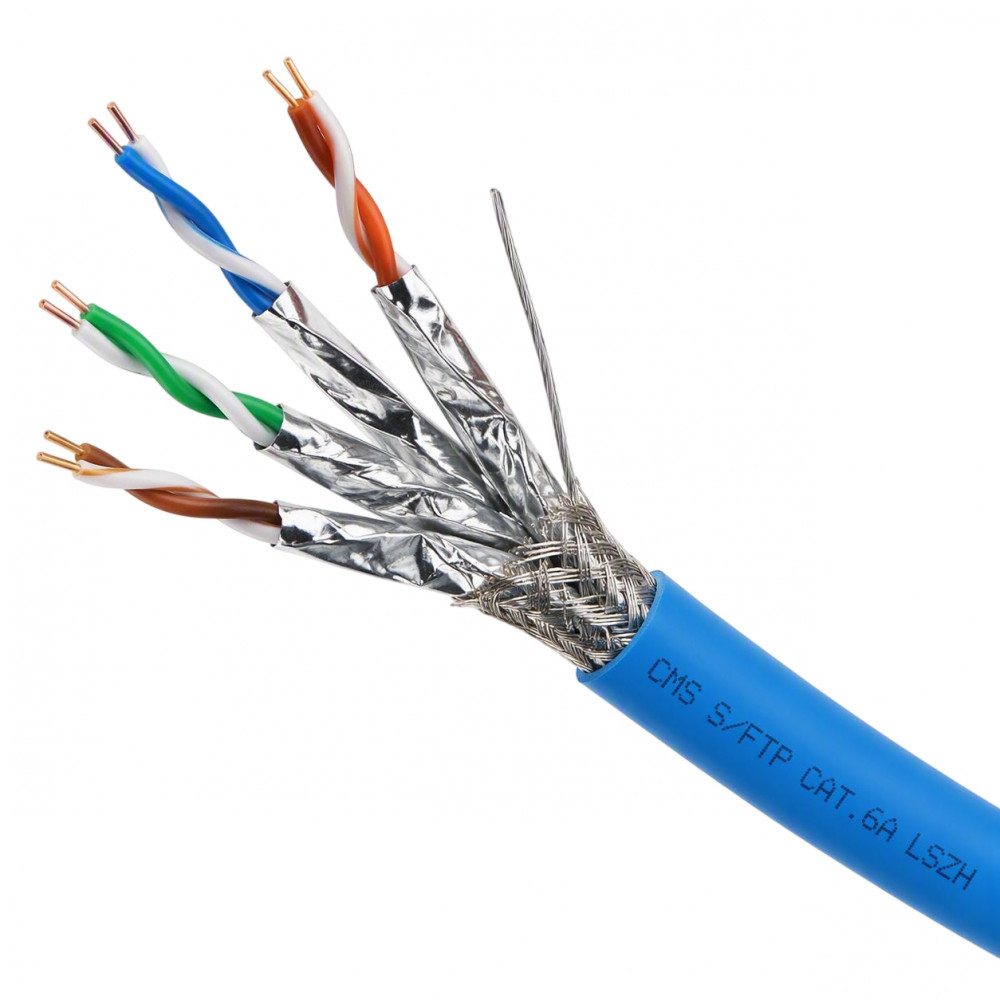

Construction
- Conductor: soft copper wire, AWG23, Ø 0.55 mm.
- Insulation: Skin-Foam-Skin HDPE, Ø 1.35 mm.
- Pair: two conductors twisted together.
- Pair colors: white/blue; white/orange; white/green; white/brown.
- Pair shielding: individual Al/PET foil, metal side facing outward.
- Core wrapping: PET film.
- Overall shield: tinned copper braid, 31% coverage.
- Jacket: LSZH, 0.5 mm thickness, nominal cable Ø 7.0 mm, blue.
Applications
The cable supports PBX, V.11, X.21, ISDN, Ethernet (10Base-T), ATM-25/52/155 Mbit/s, 100VG-AnyLAN, Token Ring 16/100 Mbit/s, Fast Ethernet (100BASE-TX), Gigabit Ethernet (1000BASE-T), 2.5GBASE-T, 5GBASE-T, 10GBASE-T, HDBaseT, PoE, PoE+, and PoE++.
Standards Compliance
- Cabling: ISO/IEC 11801-1, EN 50173-1
- Cable: IEC 61156-5, EN 50288-4-1
- Fire: IEC 60332-1-2; IEC 60754-2; IEC 61034-2
- CPR class: Dca
Mechanical Characteristics and Operating Conditions
| Parameter | Value |
|---|---|
| Installation temperature | -10 °C to +60 °C |
| Operating temperature after installation | -20 °C to +60 °C |
| Bending radius during installation | ≥ 8D |
| Bending radius after installation | ≥ 4D |
| Maximum pulling force | ≤ 85 N |
Electrical Characteristics at 20 °C, 100 m
| Parameter | Unit | Value |
|---|---|---|
| Capacitance | pF/m | ≤ 56 |
| DC resistance | Ohm/km | ≤ 79 |
| Insulation resistance | GOhm·km | ≥ 5 |
| Resistance unbalance | % | 2 |
| Propagation velocity | s | 0.79 |
| Propagation delay | ns/100 m | ≤ 534+36/√f |
| Characteristic impedance, 1–100 MHz | Ohm | 100±15 |
| Characteristic impedance, 100–250 MHz | Ohm | 100±22 |
| Characteristic impedance, 250–500 MHz | Ohm | 100±25 |
| Test voltage between conductors (DC, 2 s) | kV | 2.5 |
