Cat.8 STP Field Termination Plug for 25GBASE-T Systems

Full Shielded Cat8 8P8C Tool Free Plug for 25GBASE-T Field Termination. Cat8 field termination plug is designed to be applied under 30 meter channel test for data center links. The Cat8 connector allows you to transport data up to 2.5 times faster for switch-to-server connections in data centers. The RJ45 Cat8 field termination plug supports 25GBASE-T for short distances up to 30 meters. The Cat8 tool-free plug meets PoE++ (also known as 4PPoE and IEEE802.3bt Type 4) and provides excellent network cabling performance. We have the complete Category 8 solution for the highest speed data needs.

Cat8 Tool-Free Plug With Category 8 Class I Channel Performance

Cat8 RJ45 field termination connector meets Channel performance. For data center cabling design, a 25GBASE-T RJ45 copper cabling is a lower cost and optimal alternative to a fiber optic cabling with links in less than 30 meters. The Cat8 tool-free plug, an advancement of its predecessor Category 7, is also a great substitute for a Category 7 connector that is not an IEEE standard and is not approved by TIA/EIA. Category 7 does not use a traditional RJ45 interface, meanwhile Cat8 field termination plug makes network migration easier because it uses RJ45, the universal connector type that is the common and global standard for servers and switches.

Specifications

• Full shield with zinc alloy housing.
• With T-568A and T-568B wiring pinout map.
• Category 8 channel performance verified.
• For PoE++ (4PPoE and IEEE 802.3bt Type 4) applications.
• Easy, fast, and reliable installation.

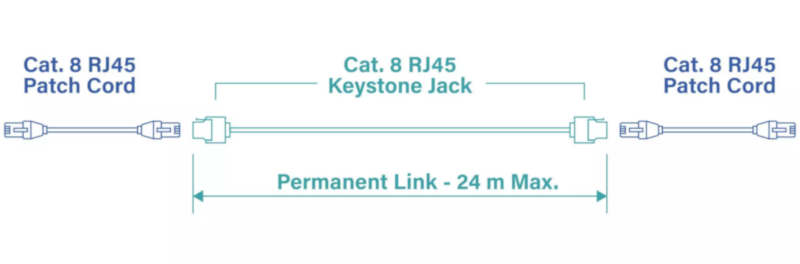

• Support banwidths of 2000MHz at Channel length up to 30 Meters
• Comply with ANSI/TIA-568-C.2-1 Cat.8.1 and ISO/IEC 11801-1 .Ed3
• Support 25G BASE-T and 40G BASE-T
• Cable wire gauge: 22-24 AWG
• Cable outer diameter: 6.0-9.0mm
• Suitable for the PoE plus(IEEE802.3at)
