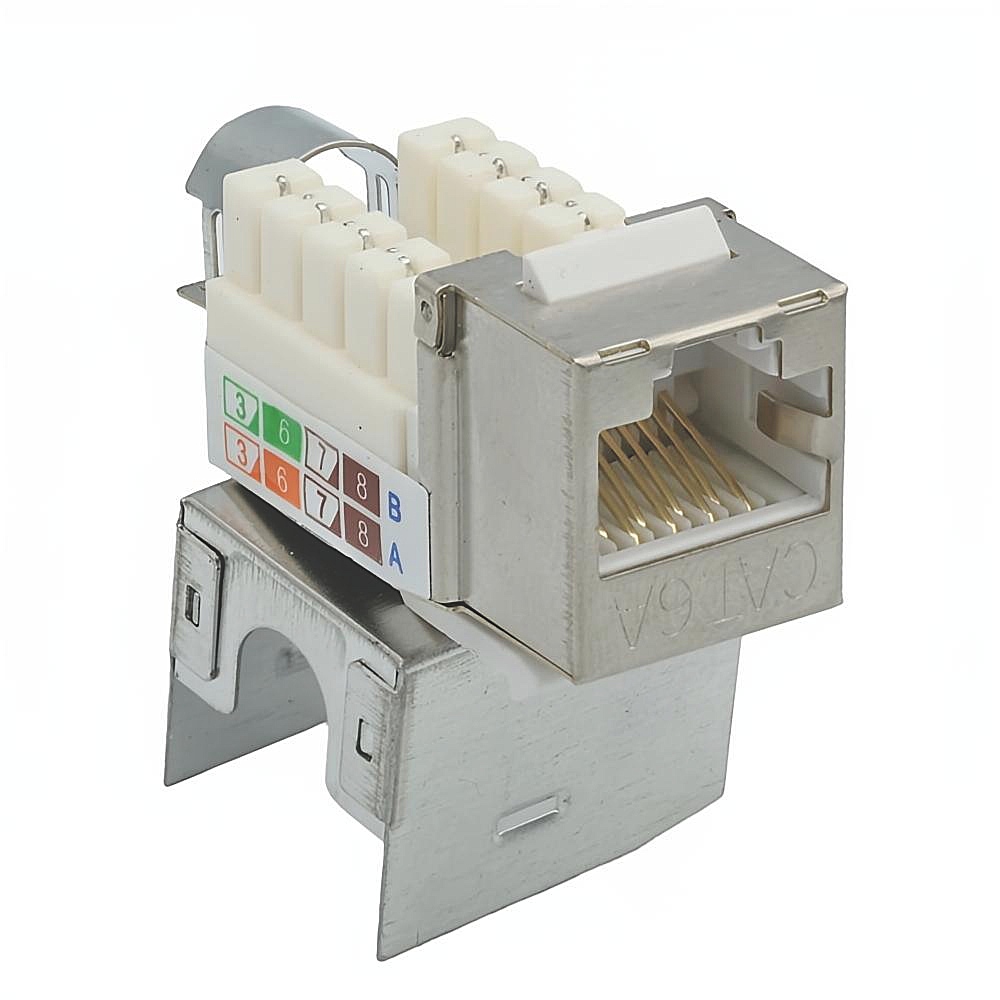

Module KeyStone RJ45 FTP, cat. 6A, 110, Slim, W - 17.3 mm, EPNew

C6A, 90 Degree FTP Keystone Jack, IDC: 110, w/o Cap

- RoHS
- Meets C5e EIA/TIA 568B Standard
- Meets C6 EIA/TIA 568B Standard
- Meets C6A EIA/TIA 568C Standard
- For 22-26 AWG
- IDC Punch Down Cycle: Over 250 Cycles (min.)
- Jack Insertion Cycle: Over 2000 Cycles (min.)
- Operation Temperature: -40 ~ +70 Degree Celsius

- Body: Fireproof ABS UL-94V0
- Metallic Case: Metal
- Jack: 8P8C 50 micro inches gold plated
- PCB: FR-4 / UL-94V0
- IDC Cap: Fireproof ABS UL-94V0
- IDC Body: Fireproof ABS UL-94V0
- IDC Pin: Bronze & Tinned

- Insulation Resistance: 500M ohms (min.)
- Contact Resistance: 20m ohms (max.)
- Current Rating: 1.5 Amps.
- DC Resistance: 0.1 ohms (max.)
- Withstanding Volatage: 1000 VAC RMS @ 60Hz/1min.
