Fiber optic box mini for fibers, 200x80x28mm, with cable organizer

Product Code: UA-FOBSM-B
Brands CMS
510.00 грн./pc
Price with Tax
In Stock
Specification
Adapter type
SC Simplex / LC Duplex / SC Duplex / LC Quad / ST / FC
Number of adapters
2 - 4
Number of fibers
8
Execution
indoor
Description

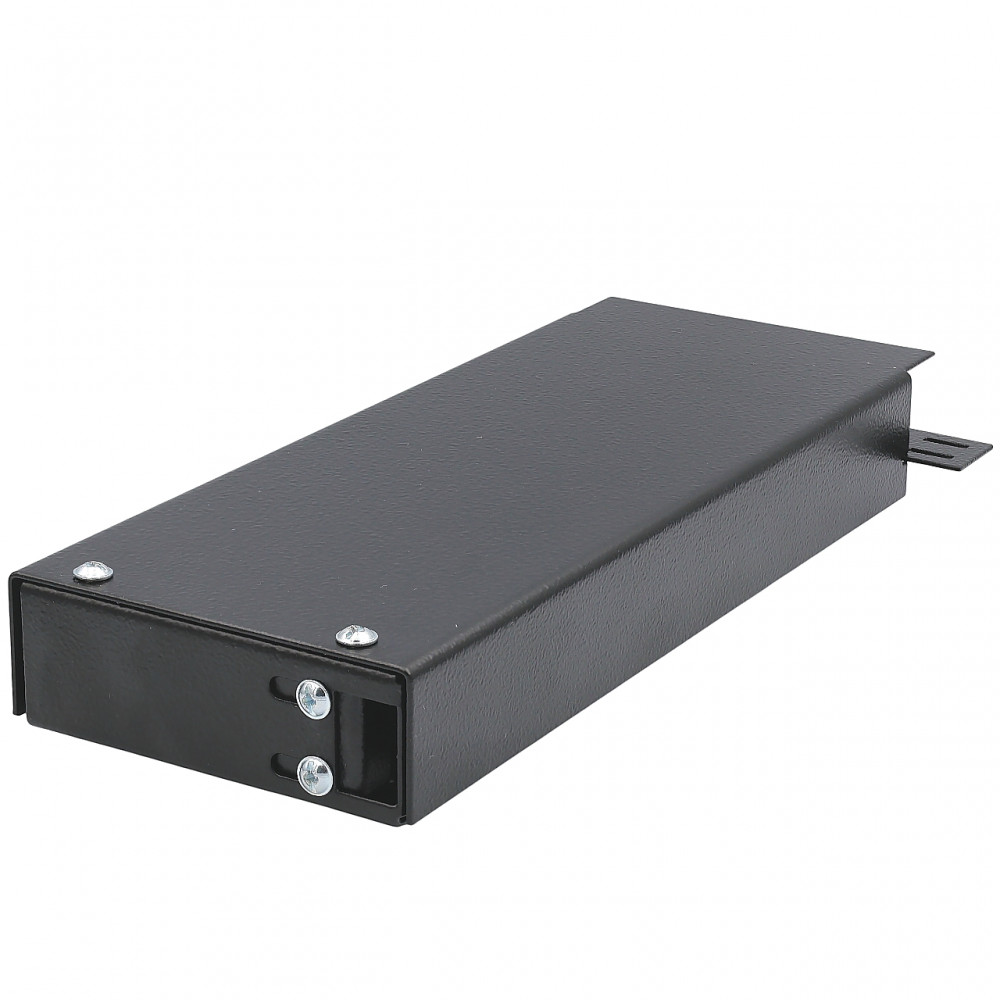

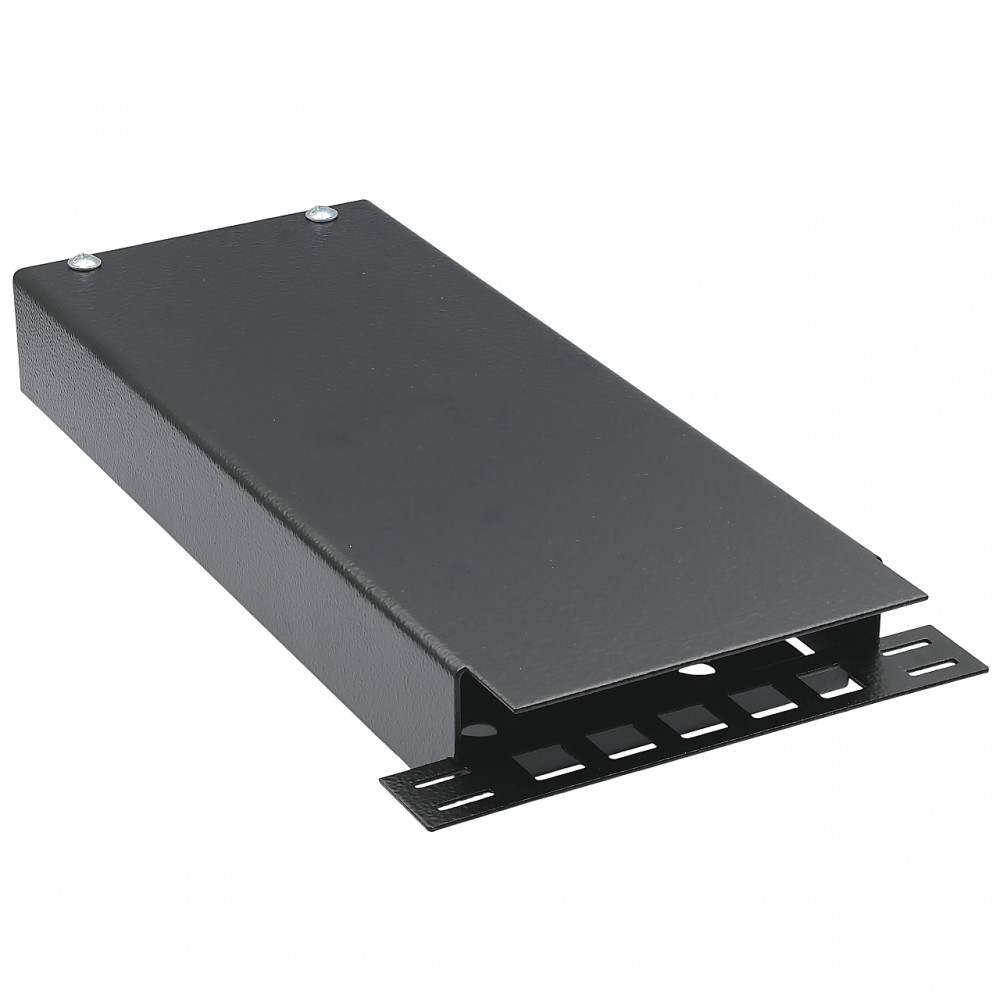

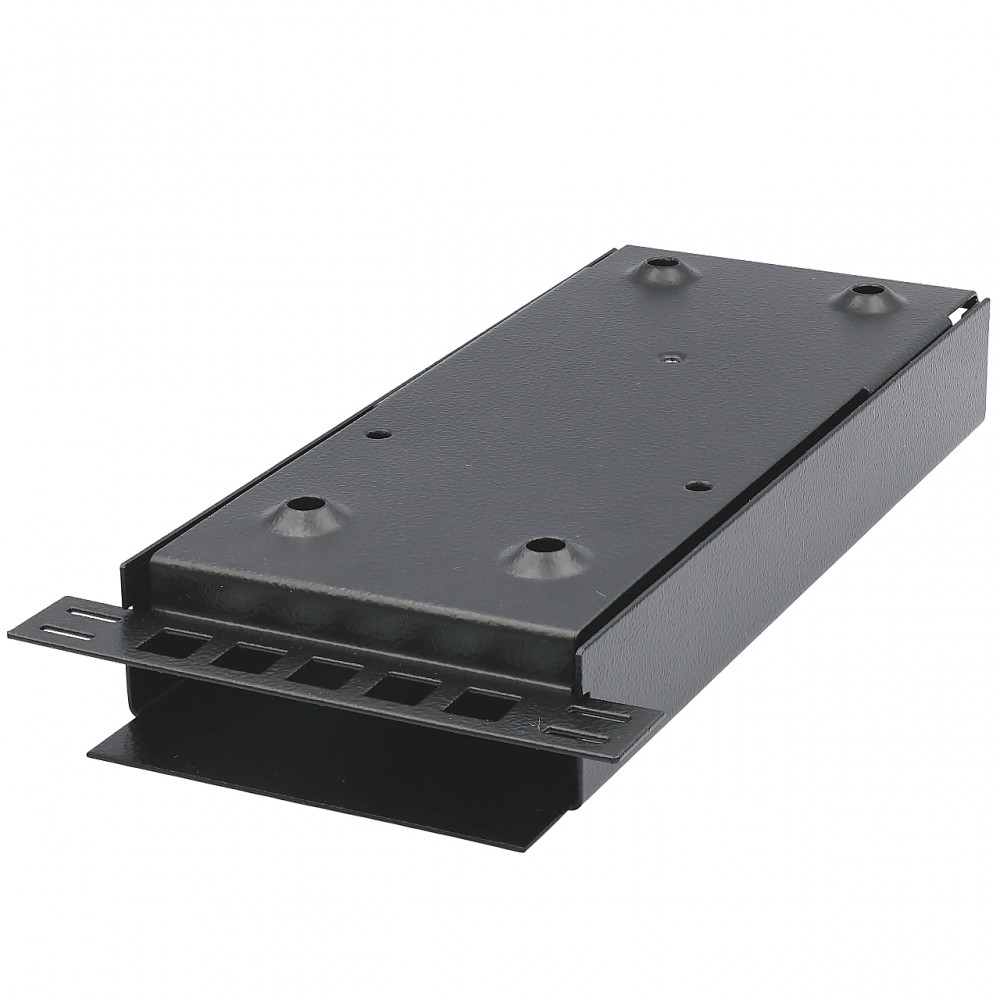

  • The mini box is used for indoor installation. The terminal is designed for FTTH applications both for installation on the floor of a multi-story building and for private houses. The box can be used for FTTD applications as a subscriber optical outlet.

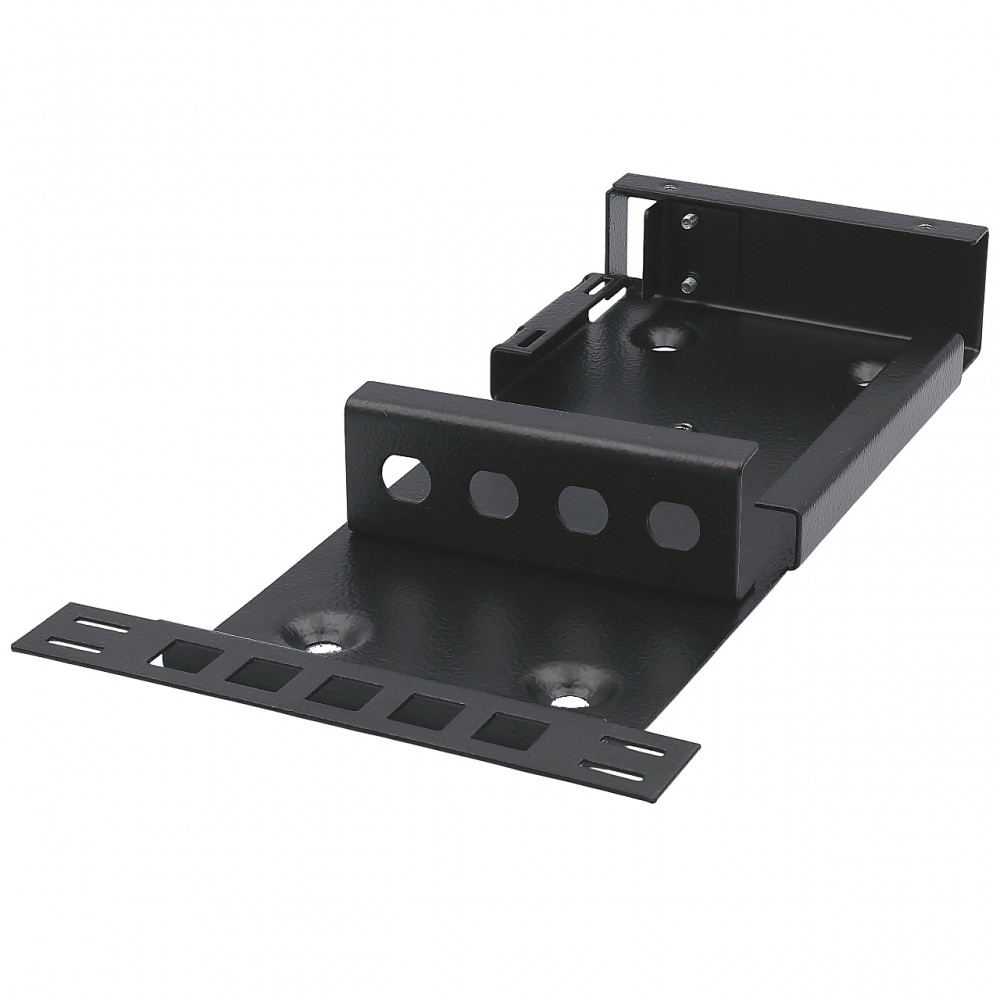

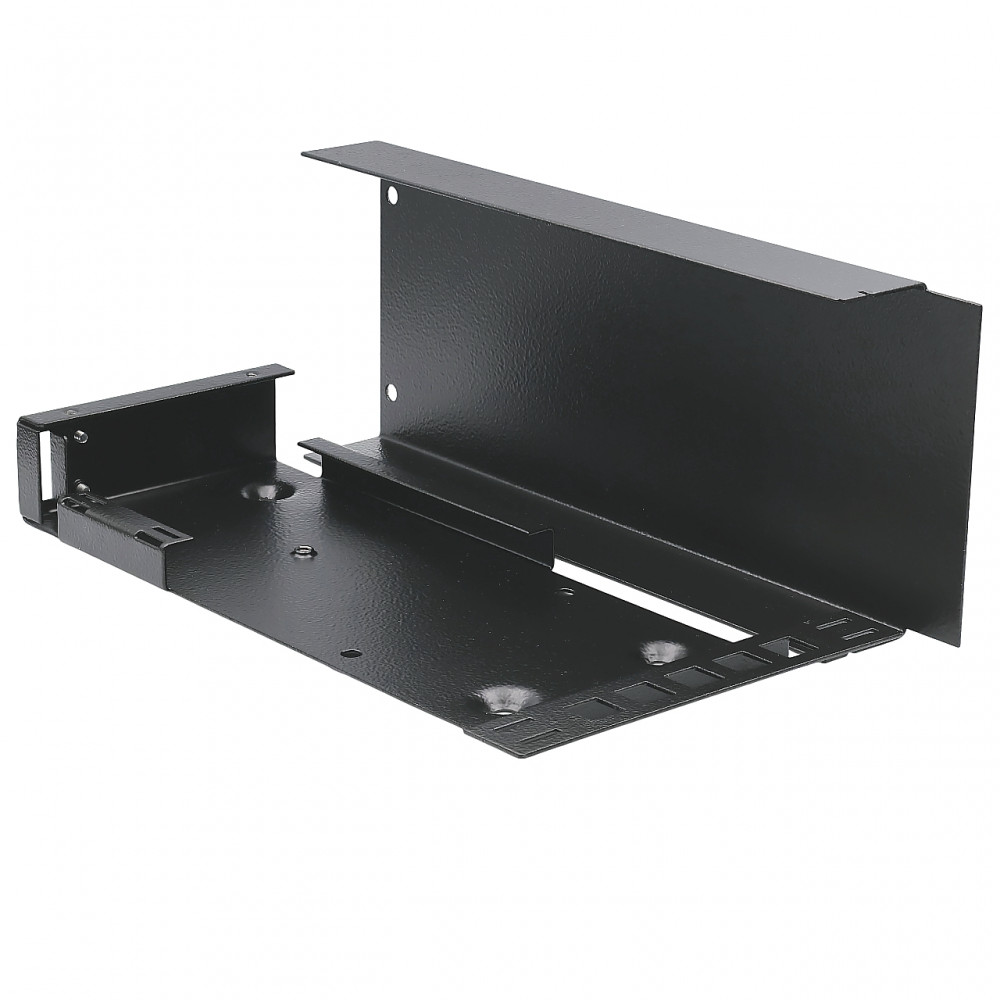

  • The cable entry is made in the form of a pressure bar with rubber seals. To fix the cable inside the box, special holes for ties are provided. For laying fibers inside the box, special sides are provided (See photo).
  • The box can accommodate both mechanical and welded connections. The box can be equipped with SC, LC, ST, FC connectors.
  • The box is equipped with a cable organizer for additional fixation of patch cords or patch cord cable with ties to avoid accidental damage to the detachable connection. In this case, the outgoing patch cord cable can be fixed both in the direction downwards from the box and in the direction away from the box.

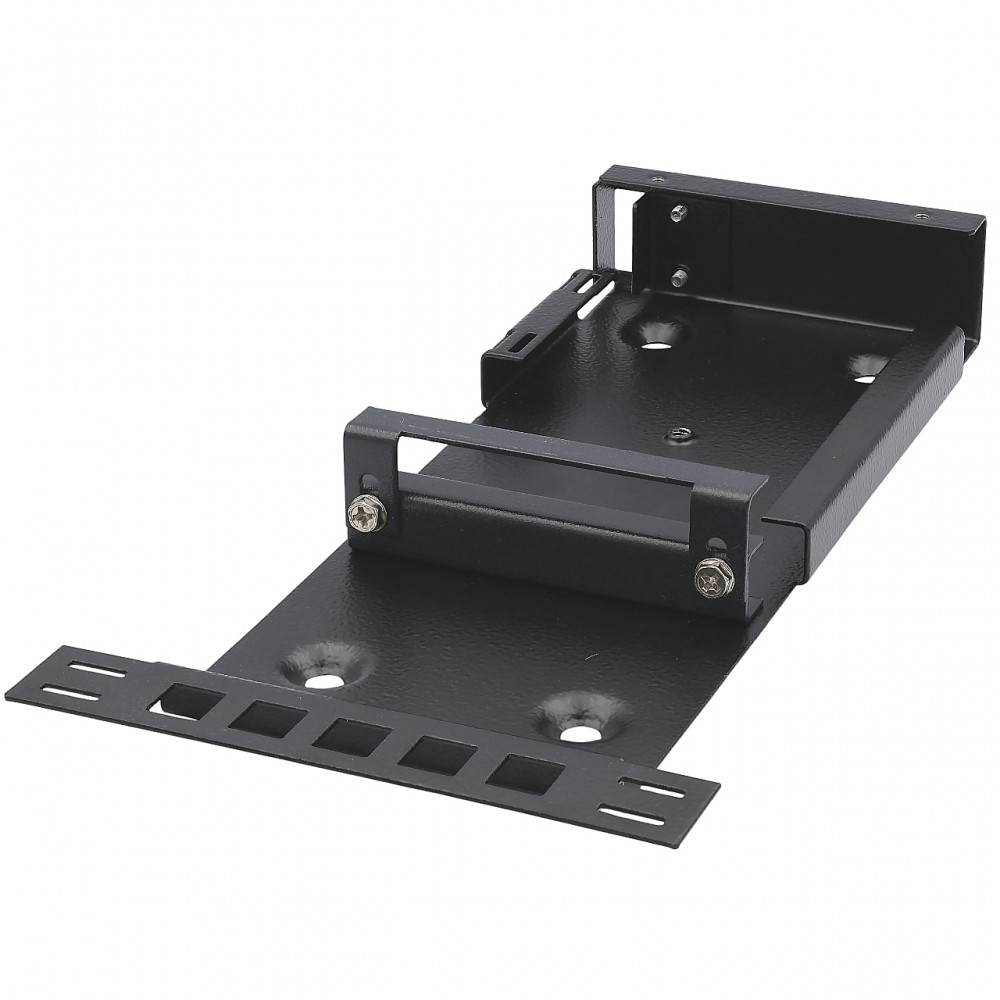

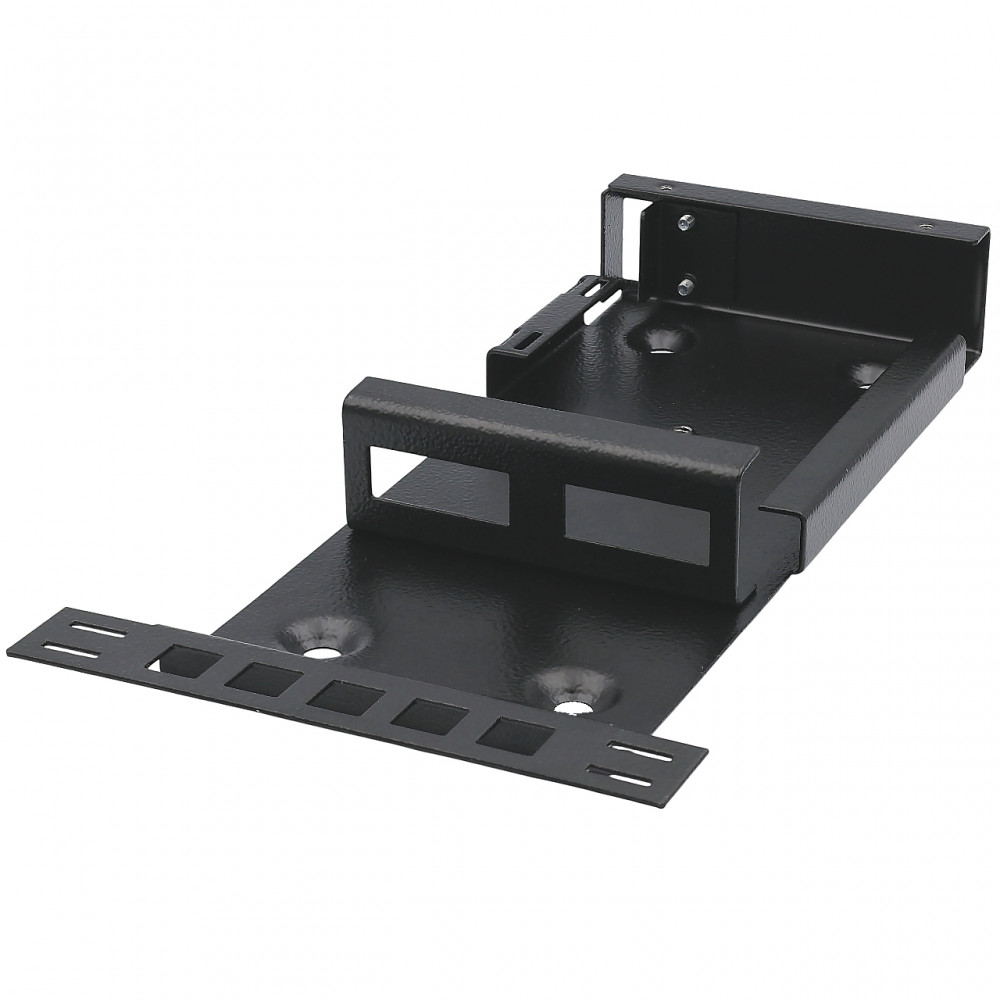

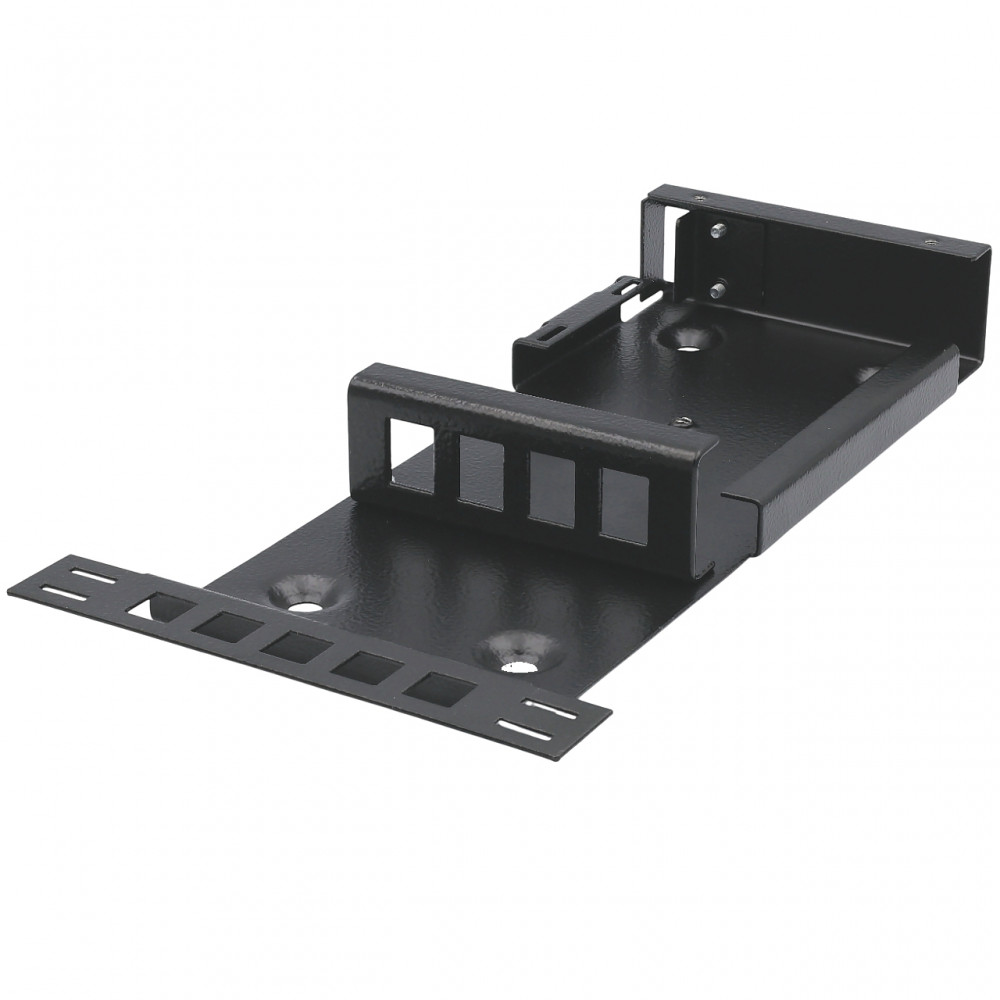

  • The bar for the corresponding types of adapters is supplied separately. Also, instead of the bar for FO adapters, a clamping bar with UA-FPMRM rubber seals is offered to enable the use of the box without FO adapters. In this case, the patch cord cable is welded directly inside the box and additional fixation of the cable with ties at the exit from the box is simply necessary.
The box is available in two colors - black and gray. Bars for adapters and for cable clamping are supplied only in black. The dimensions of the box are minimal for the most convenient and comfortable placement of fibers and patch cords inside the box.


  • Material: steel
  • Dimensions: HH (200x80x28) mm
  • Weight: 383 g
