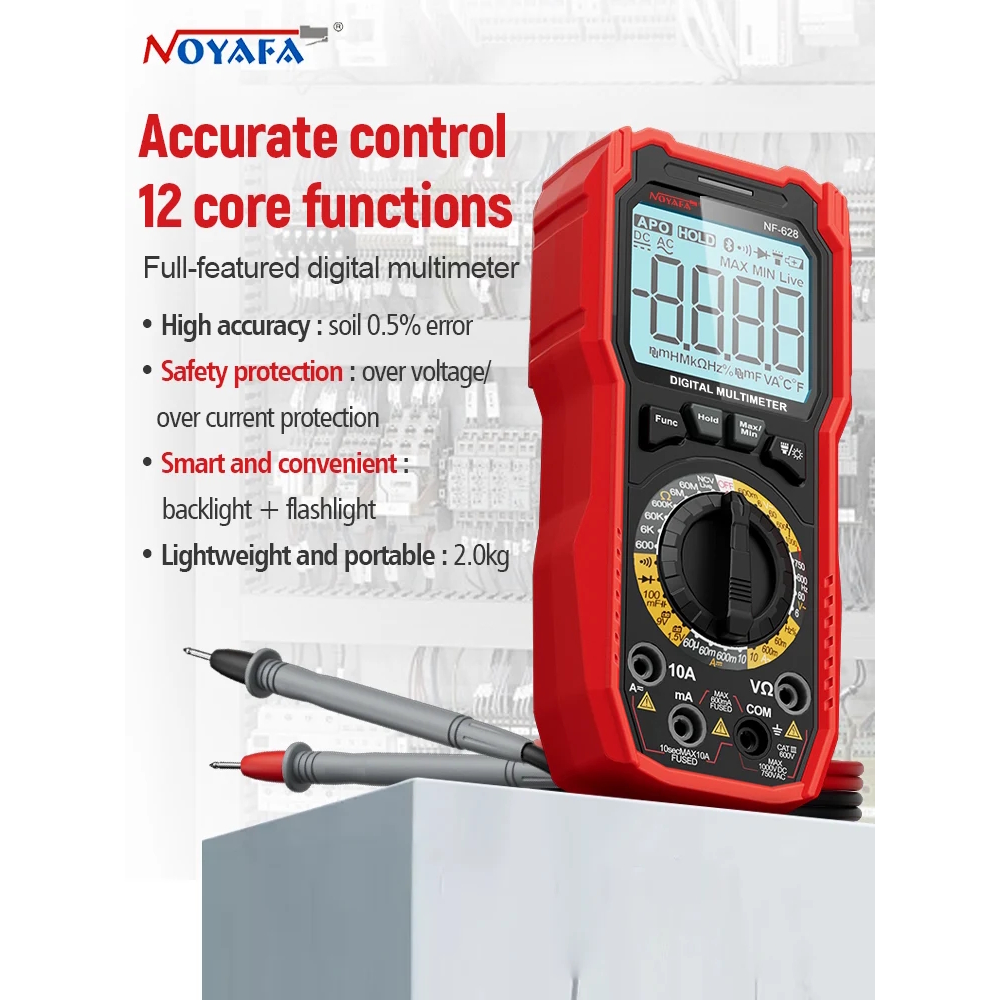

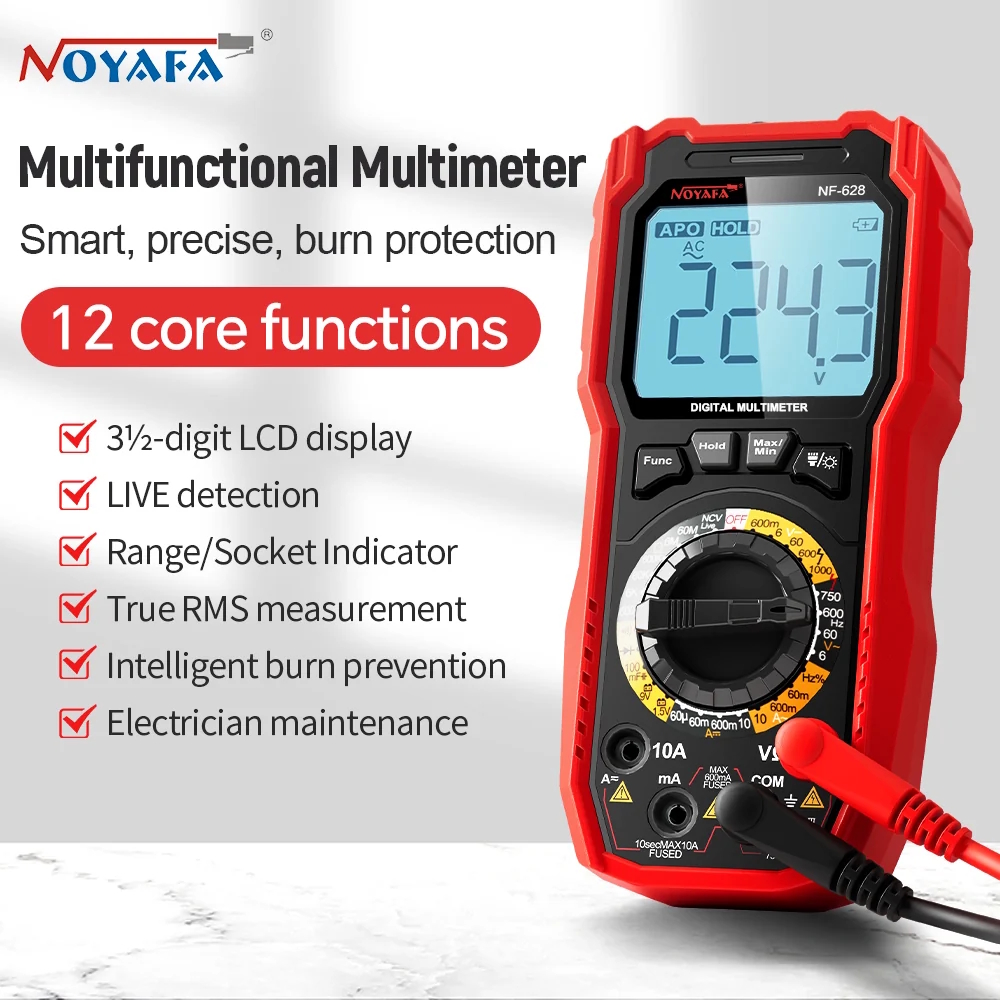

PrintNOYAFA NF-628 Digital Multimeter
The NOYAFA NF-628 is a versatile 6000-count digital multimeter designed for measuring voltage, current, resistance, capacitance, and frequency. Equipped with NCV non-contact voltage detection, LIVE wire identification, a backlit display, and a built-in flashlight, it is an ideal tool for electrical troubleshooting, maintenance, and everyday testing tasks.
Key Features

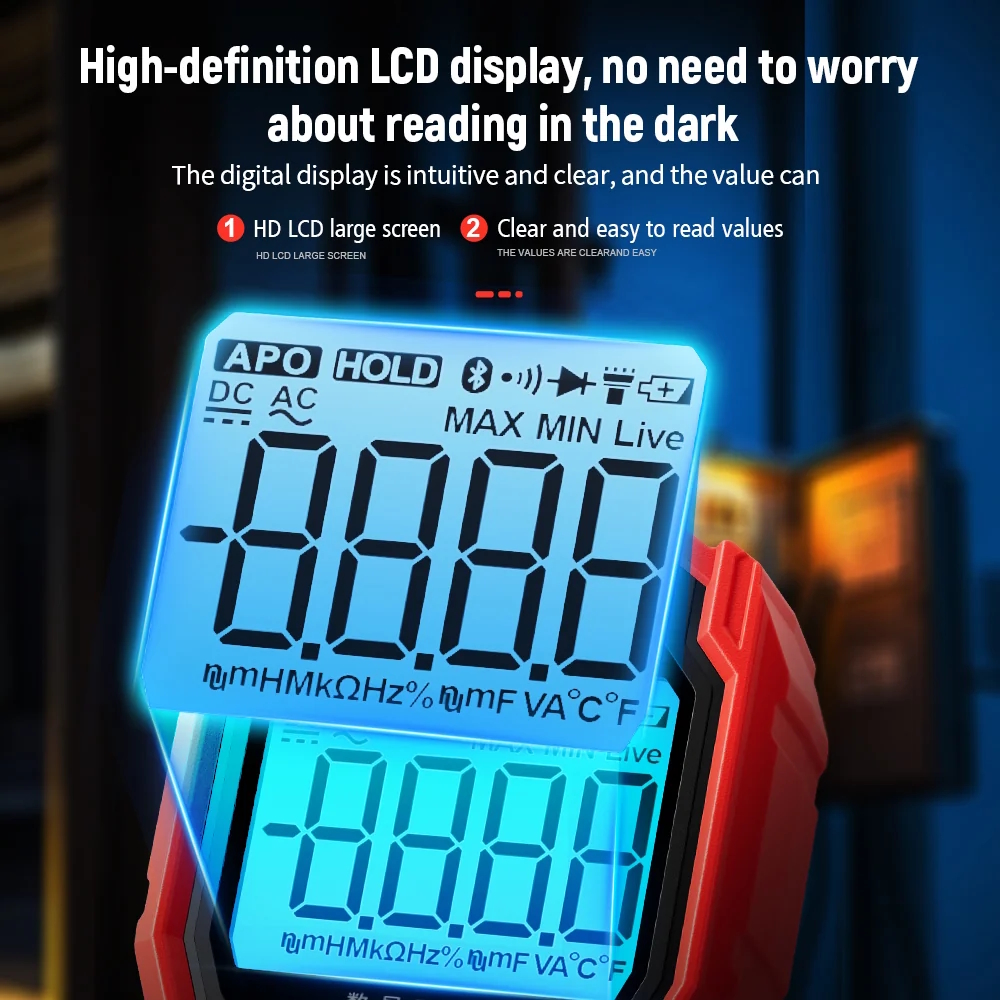

- 6000-count FSTN display with clear backlighting
- Measures DC voltage up to 1000V.
- Measures AC voltage up to 750V.
- Measures AC and DC current up to 10A.
- Resistance measurement up to 60MΩ.
- Automatic capacitance measurement from 10nF to 100mF.

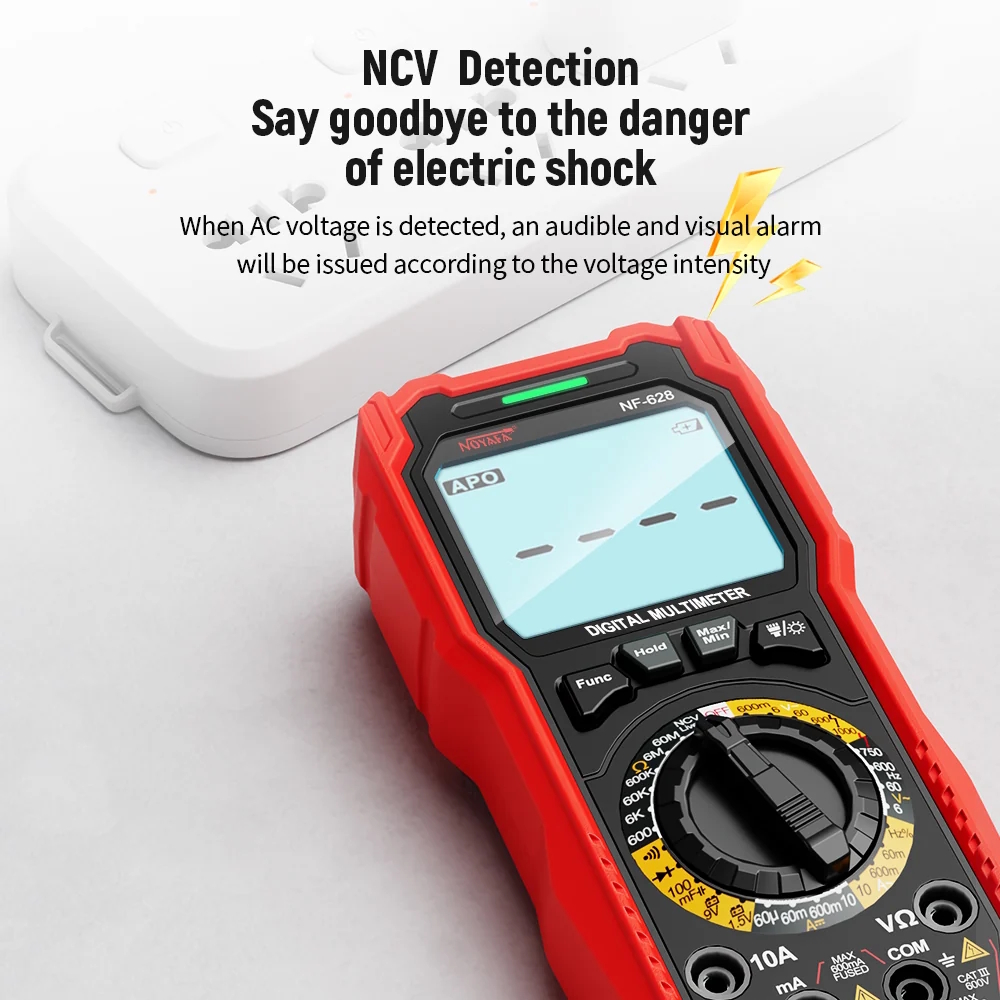

- NCV non-contact voltage detection.

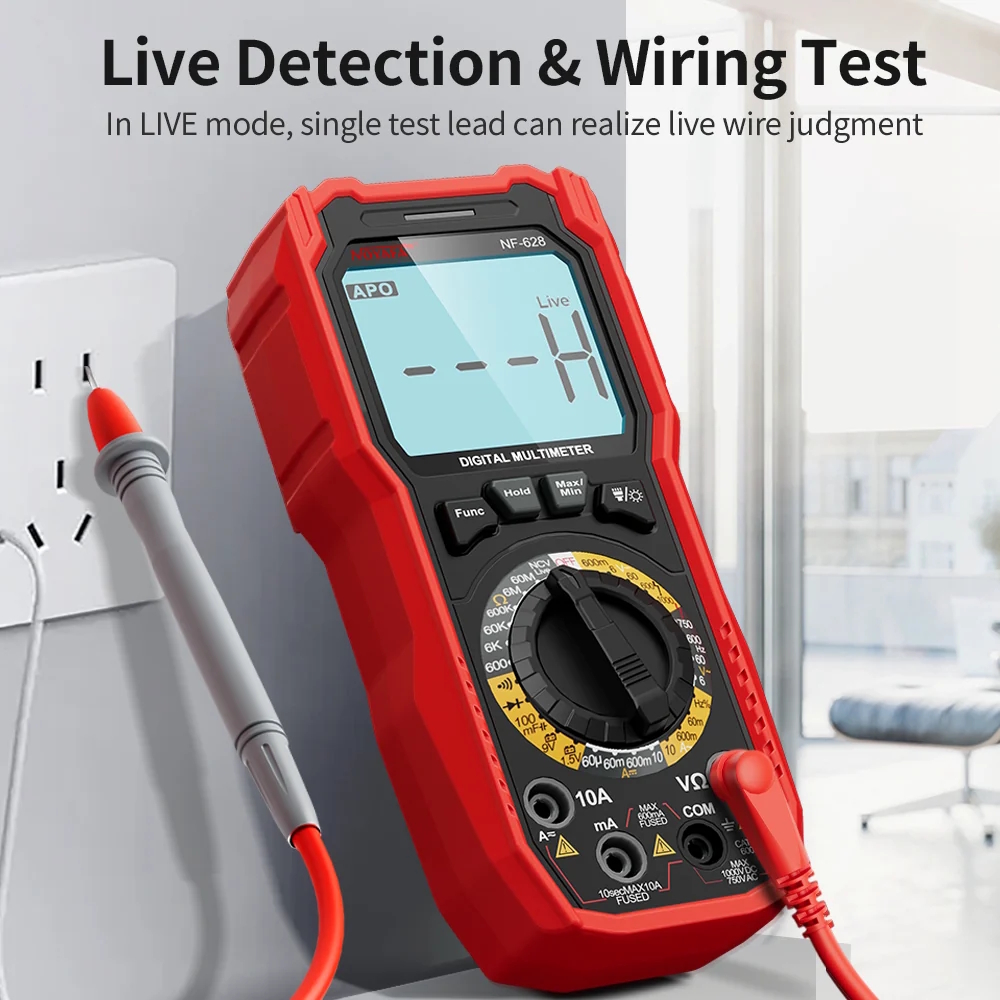

- LIVE wire detection for identifying live and neutral conductors.
- Diode testing and continuity check with audible buzzer.
- 1.5V and 9V battery testing.
- Data Hold and MAX/MIN recording functions.
- Built-in flashlight and automatic power-off function.
Functions
The NF-628 supports:
- DC voltage measurement
- AC voltage measurement
- DC current measurement
- AC current measurement
- Resistance measurement
- Capacitance measurement
- Frequency measurement
- Duty cycle measurement
- Diode testing
- Continuity testing
- Battery testing
- NCV voltage detection
- LIVE wire identification
Technical Specifications
| Parameter | Specification |
|---|---|
| Display | 6000-count positive FSTN display |
| Display Refresh Rate | Approx. 3Hz |
| DC Voltage | 600mV / 6V / 60V / 600V / 1000V |
| AC Voltage | 6V / 60V / 600V / 750V |
| DC Current | 60μA / 60mA / 600mA / 10A |
| AC Current | 60mA / 600mA / 10A |
| Resistance | 600Ω to 60MΩ |
| Capacitance | 10nF to 100mF |
| Frequency | 6kHz / 600kHz |
| Duty Cycle | 1% – 99% |
| Battery Test | 1.5V / 9V |
| Diode Test | Yes |
| Continuity Test | Yes |
| NCV Detection | Yes |
| LIVE Test | Yes |
| Data Hold | Yes |
| MAX/MIN Recording | Yes |
| Backlight | Yes |
| Flashlight | Yes |
| Auto Power Off | Approx. 15 minutes |
| Power Supply | 2 × AA batteries |
| Dimensions | 191 × 88 × 55.5 mm |
Applications
The NOYAFA NF-628 is suitable for:
- Household electrical troubleshooting
- Testing outlets, switches, and wiring
- Automotive battery and fuse inspection
- Home appliance maintenance
- Electronic component testing
- Low-voltage control circuit diagnostics
- Educational and laboratory use
- DIY electrical projects
Package Contents

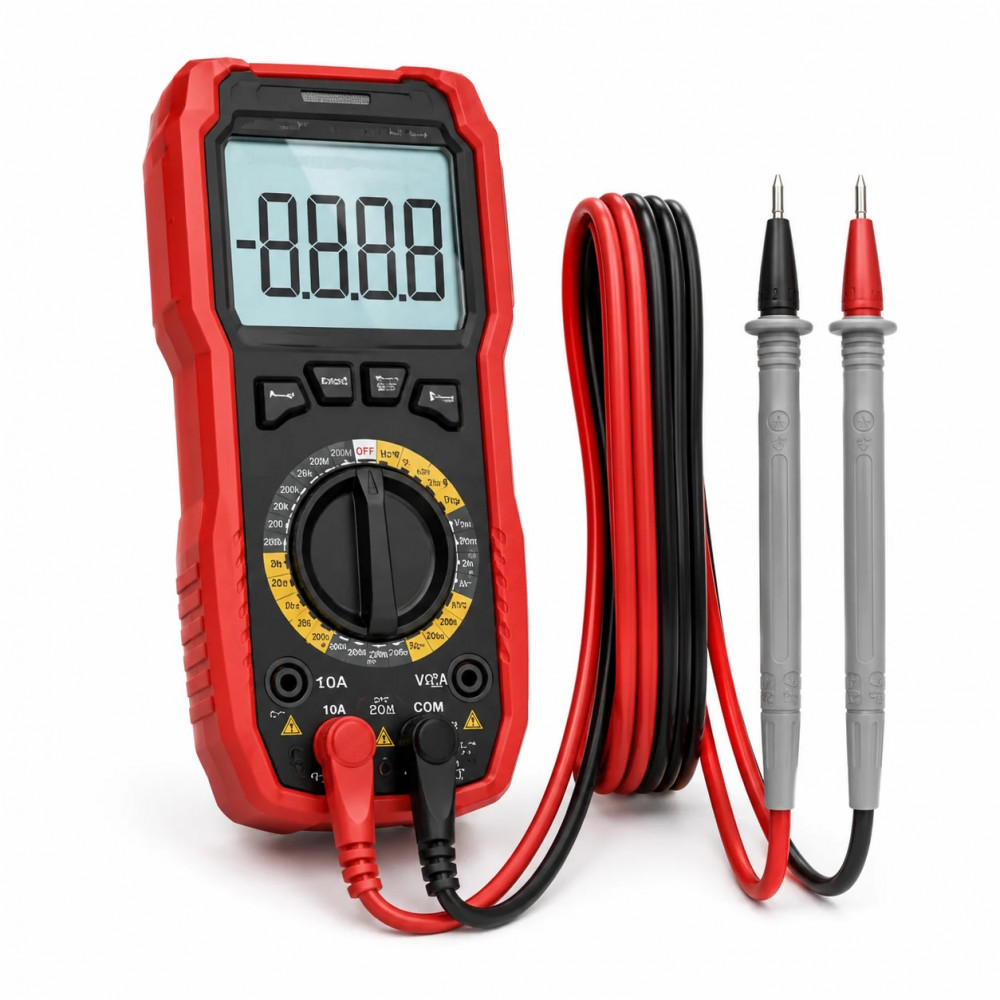

- 1 × NOYAFA NF-628 Digital Multimeter
- 1 × Pair of Test Leads
- 1 × Carrying Bag
- 1 × User Manual
- 1 × Certificate / Warranty Card
- 1 × Retail Color Box
Note: Two AA batteries are required for operation and are not included in the package.
The NOYAFA NF-628 combines a wide measurement range, accurate readings, NCV and LIVE detection functions, and practical features such as Data Hold, MAX/MIN recording, display backlighting, and a built-in flashlight, making it a reliable solution for both professional technicians and DIY users.
