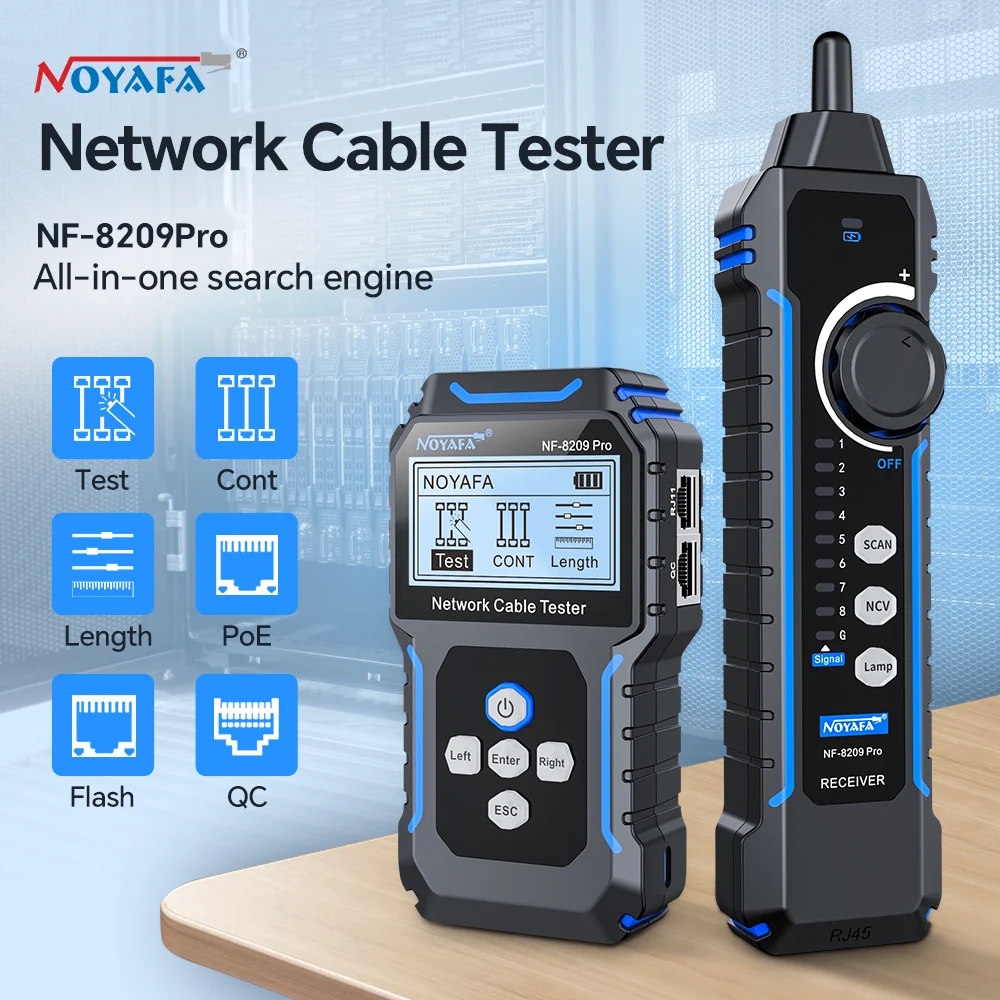

NOYAFA NF-8209 Pro Network Cable Tester

Product Description

NOYAFA NF-8209 Pro is a professional multifunctional network cable tester designed for installation, troubleshooting, and maintenance of Ethernet networks. The device combines cable tracing, wire mapping, cable length measurement, PoE testing, port flashing, RJ45 crimp quality testing, and NCV voltage detection in a single compact solution.

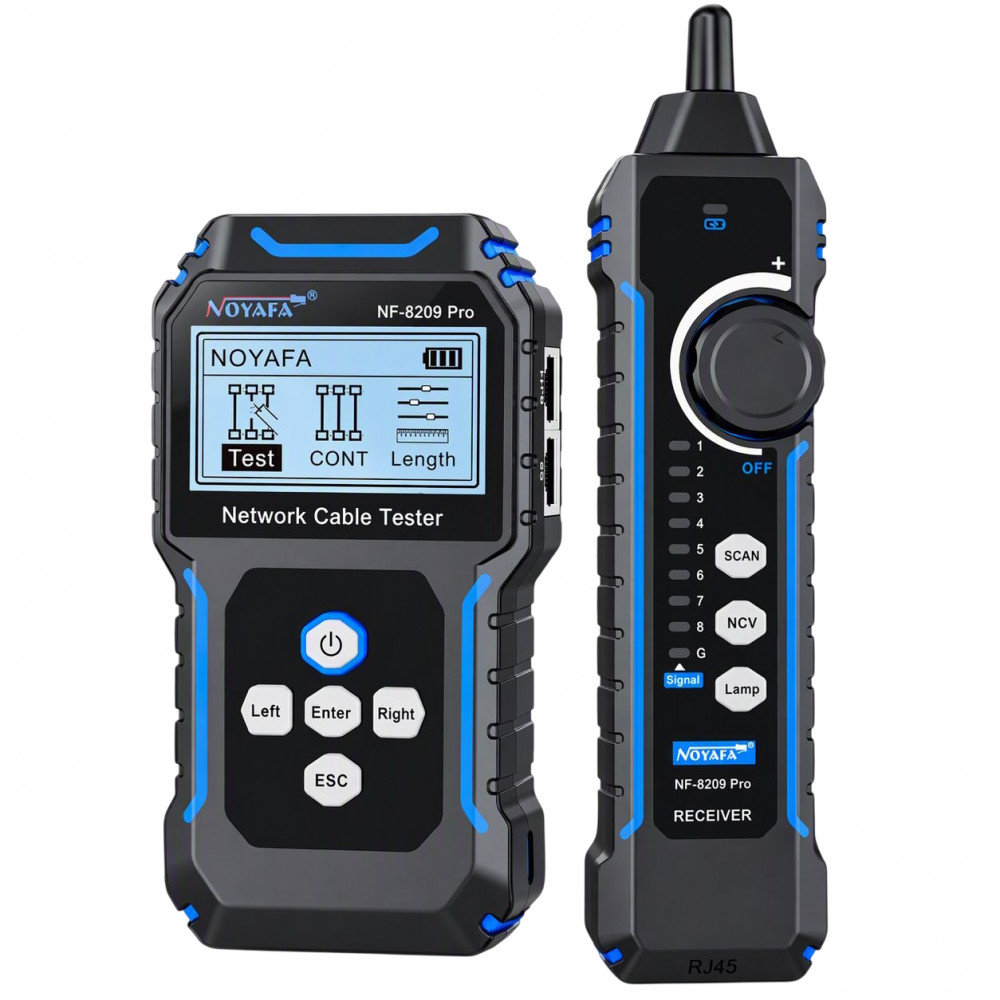

The kit includes two devices: a transmitter and a receiver, enabling technicians to quickly locate target cables in patch panels, cable bundles, server racks, and network cabinets. The advanced anti-interference cable tracing technology ensures reliable detection even in complex environments.

The NF-8209 Pro supports CAT5 and CAT6 network cables and features a backlit LCD display, rechargeable lithium batteries, and USB Type-C charging, making it an ideal tool for network installers, IT technicians, and system administrators.

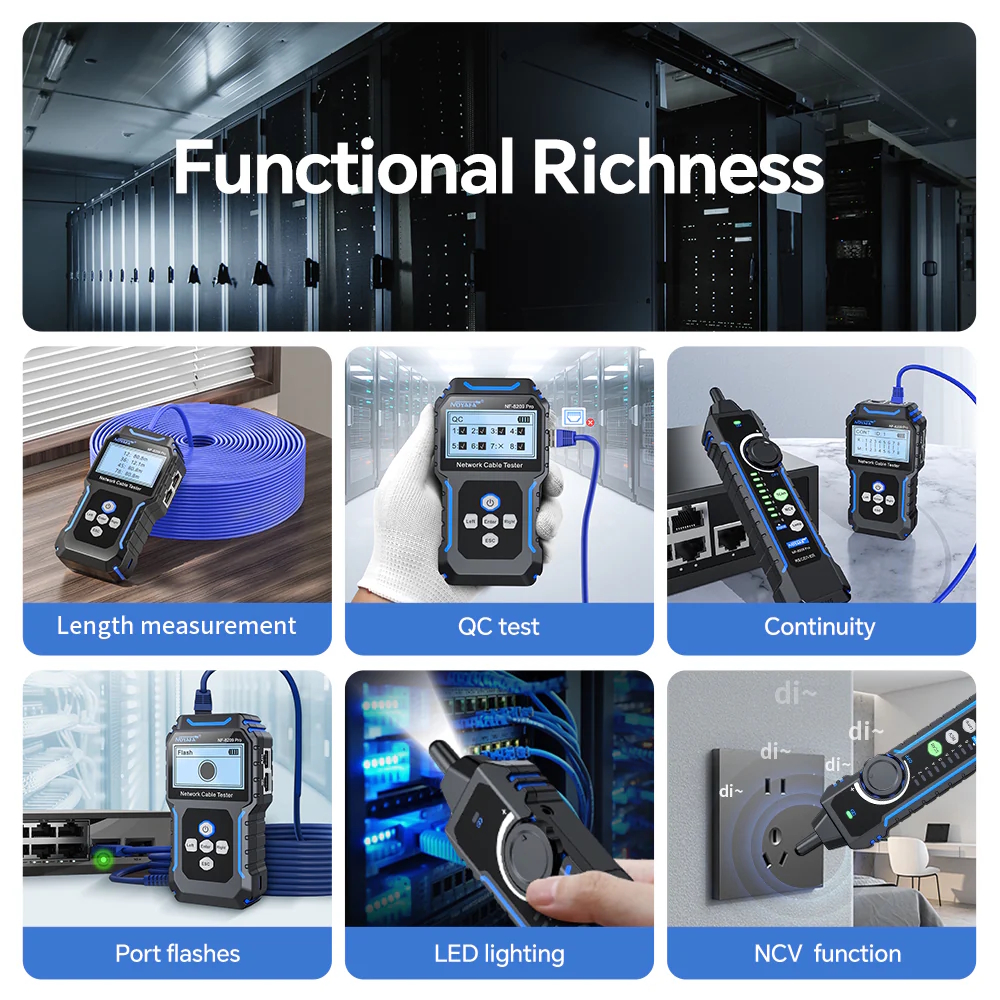

Key Features

• Anti-interference cable tracing and identification
• Wire mapping and continuity testing
• Open circuit, short circuit, and crossed wire detection
• Cable length measurement up to 350 m (1148 ft)
• PoE testing with voltage and power mode detection
• Port Flash function for easy port identification
• RJ45 crimp quality testing
• Non-contact voltage (NCV) detection
• Adjustable receiver sensitivity
• Built-in LED flashlight
• Rechargeable lithium battery with USB Type-C charging

Functions

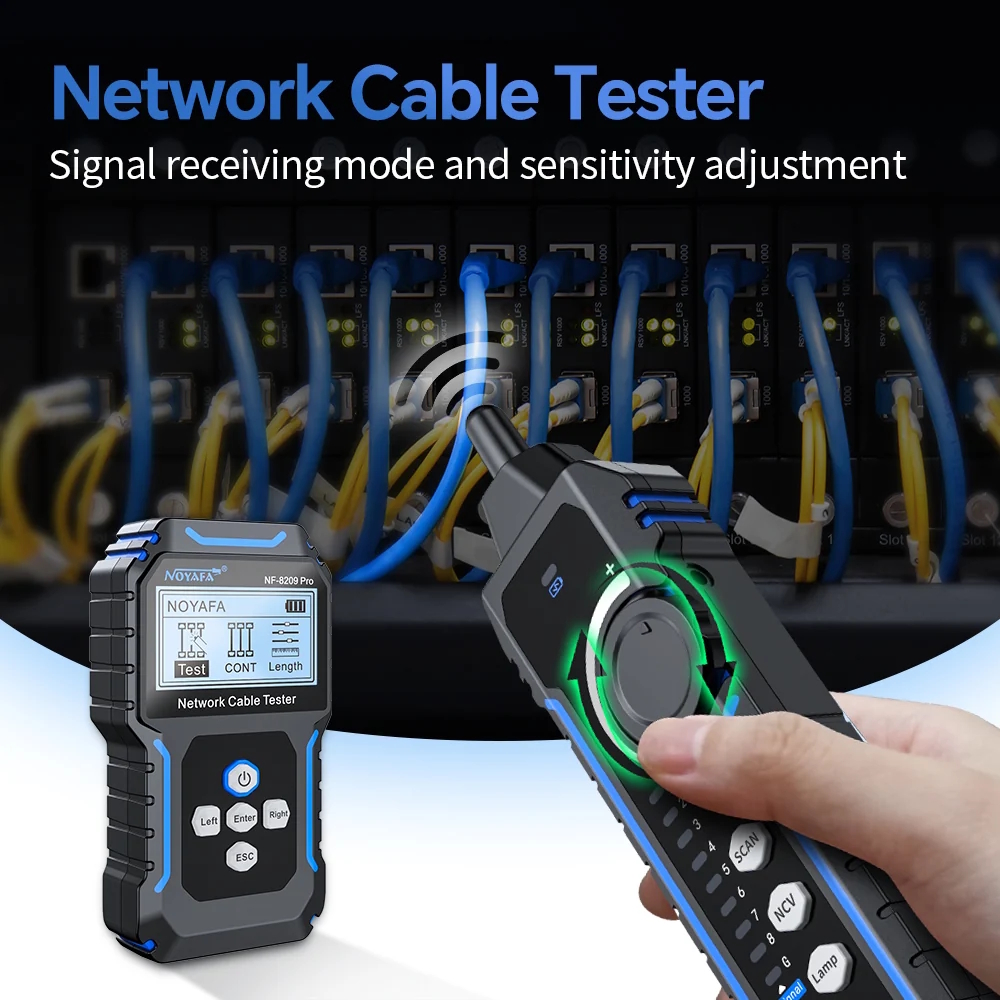

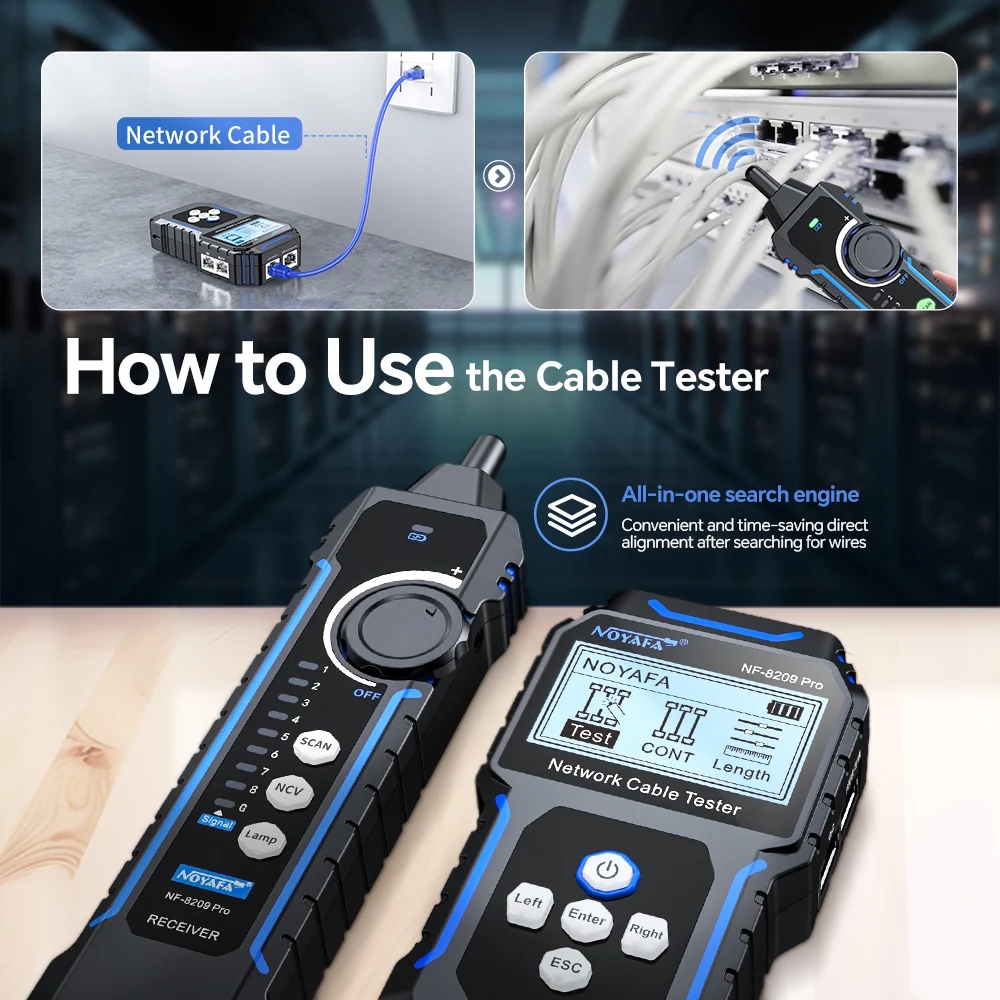

Cable Tracing (SCAN)

Quickly identifies and locates target cables among multiple wires using the receiver probe. Maximum tracing distance up to 1000 m.

Wire Mapping (CONT)

Tests network cables for:

• Correct pin configuration
• Open circuits
• Short circuits
• Crossed pairs
• Shielded (STP) and unshielded (UTP) cable verification

Cable Length Measurement

Measures cable length and displays results for each wire pair separately. Measurement range: 5-350 m.

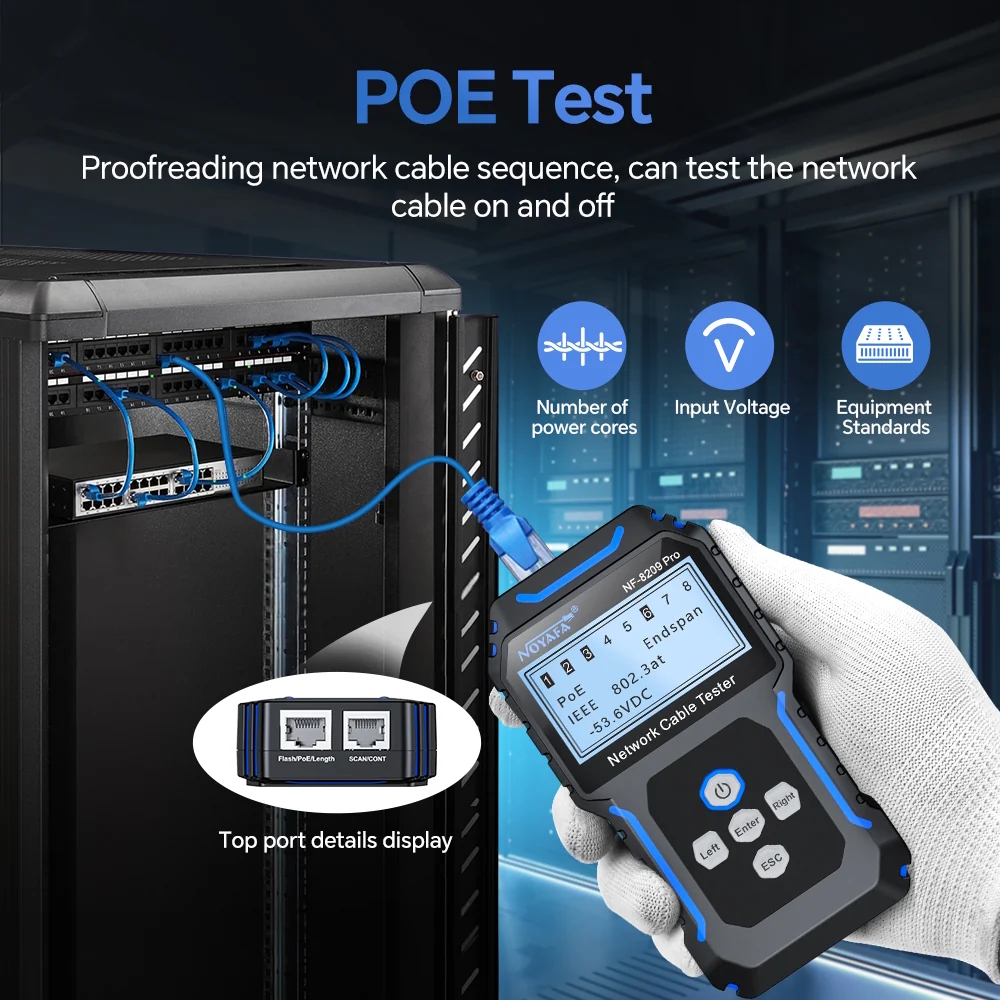

PoE Testing

Detects:

• PoE voltage
• Power polarity
• Active power pins
• Endspan/Midspan power mode
• Standard and non-standard PoE devices

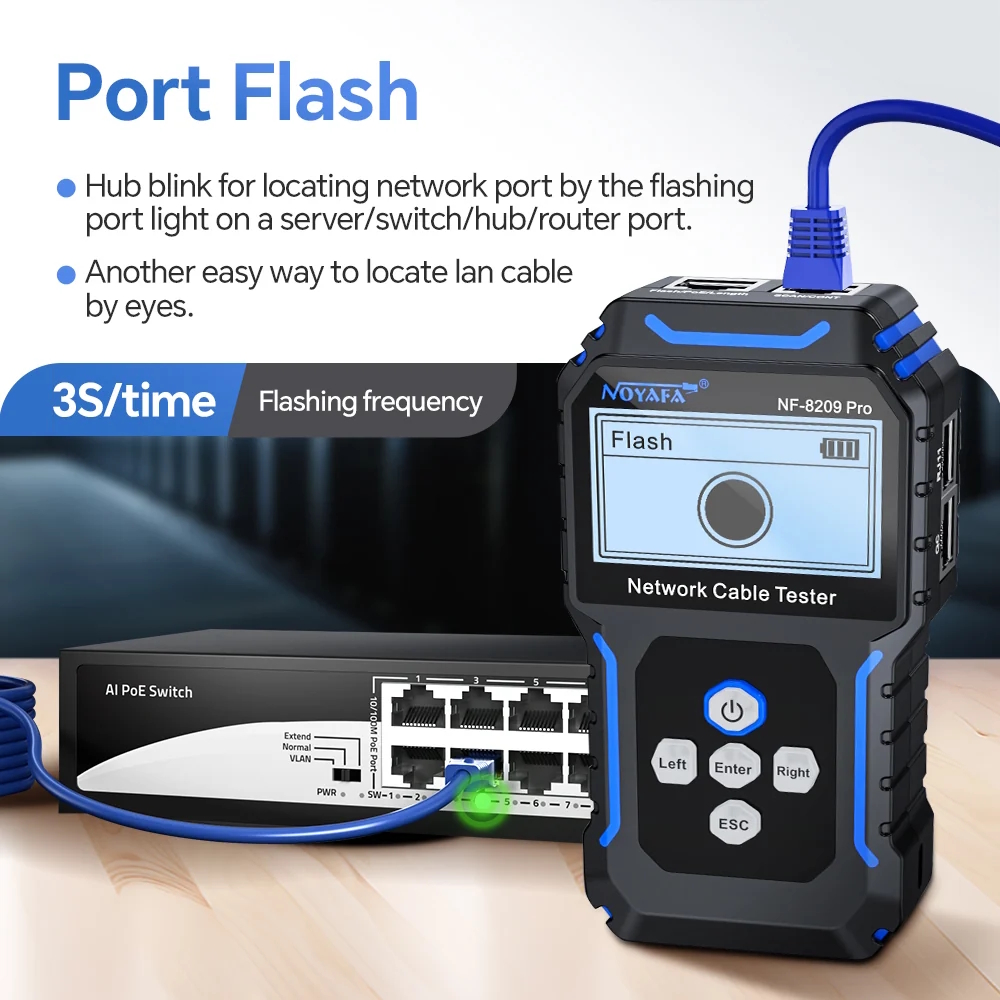

Port Flash

Identifies the correct switch or router port by flashing the port LED indicator.

QC Test

Checks whether the RJ45 connector has been correctly crimped and verifies proper conductor contact.

NCV (Non-Contact Voltage Detection)

Detects AC voltage without direct contact, helping improve installer safety during maintenance and installation work.

Technical Specifications

Transmitter

• Display: 128 × 64 LCD with backlight
• Languages: English / Chinese
• Ports: 3 × RJ45, 1 × RJ11
• Battery: 3.7V 1400mAh rechargeable lithium-polymer battery
• Backlight settings: 15s / 30s / 60s / Always On / Off
• Auto power-off: 15 min / 30 min / 60 min / Off
• Voltage protection: DC 60V
• Maximum operating current: ≤ 200mA

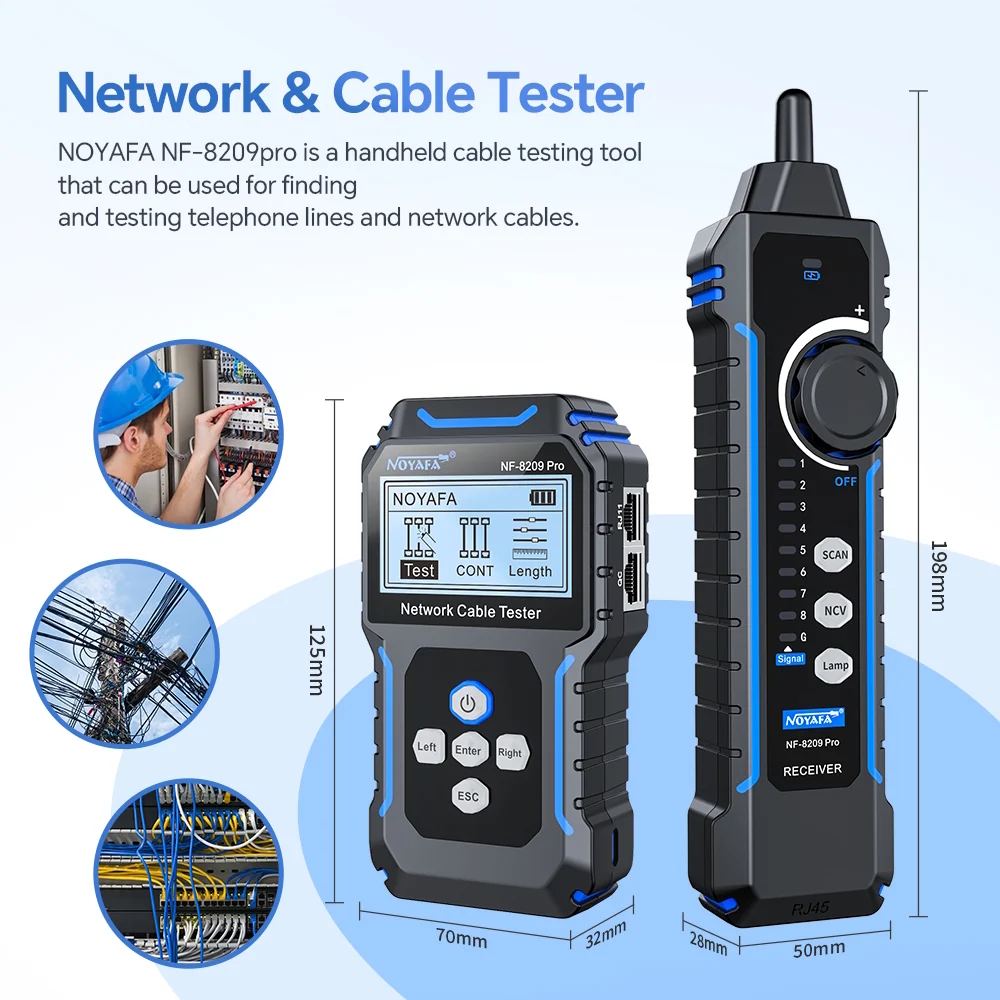

• Dimensions: 125 × 70 × 32 mm

Receiver

• Battery: 3.7V 1400mAh rechargeable lithium-polymer battery
• Adjustable sensitivity
• LED flashlight
• Audible signal indication
• Automatic shutdown after 15 minutes
• Low battery indication
• Dimensions: 198 × 50 × 30 mm

Cable Testing

• Supported cable types: CAT5, CAT6
• Cable tracing distance: up to 1000 m
• Length measurement range: 5-350 m
• Accuracy: ±1.5 m or ±3%
• Measurement units: Meter / Foot / Yard
• Tracing frequency: 455 kHz

PoE Testing

• Voltage detection range: DC 5-60V
• Power mode detection:
  • Endspan
  • Midspan
  • 8-Pin Power
  • Unknown
• Supports standard and non-standard PoE equipment

NCV Detection

• AC voltage detection range: 80-1000V AC, 50/60Hz

Package Contents

• NF-8209 Pro Transmitter
• NF-8209 Pro Receiver
• USB Type-C Charging Cable
• Alligator Clip Cable
• 6P/8P Test Cable
• Toolkit
• User Manual
• Certificate of Conformity
• Lithium Battery Instruction Card

Applications

The NOYAFA NF-8209 Pro is an all-in-one testing solution for network installers, telecommunications engineers, CCTV technicians, IT professionals, and system administrators who require fast and accurate cable diagnostics and network troubleshooting.
