NOYAFA RJ45 Cable Tester with PoE, PING, IP Scan, and Wire Tracer

Product Code: NF-8506

Brands Noyafa

Product expected

‹

›

Network Cable Tester and Scanner, Product Code NF-8506 - product image 1

Network Cable Tester and Scanner, Product Code NF-8506 - product image 2

Network Cable Tester and Scanner, Product Code NF-8506 - product image 3

Network Cable Tester and Scanner, Product Code NF-8506 - product image 4

Network Cable Tester and Scanner, Product Code NF-8506 - product image 5

Network Cable Tester and Scanner, Product Code NF-8506 - product image 6

Network Cable Tester and Scanner, Product Code NF-8506 - product image 7

Network Cable Tester and Scanner, Product Code NF-8506 - product image 8

Network Cable Tester and Scanner, Product Code NF-8506 - product image 9

Network Cable Tester and Scanner, Product Code NF-8506 - product image 10

Network Cable Tester and Scanner, Product Code NF-8506 - product image 11

7,371.00 грн./pc

Price with Tax

Not available

Повідомити про наявність

Description

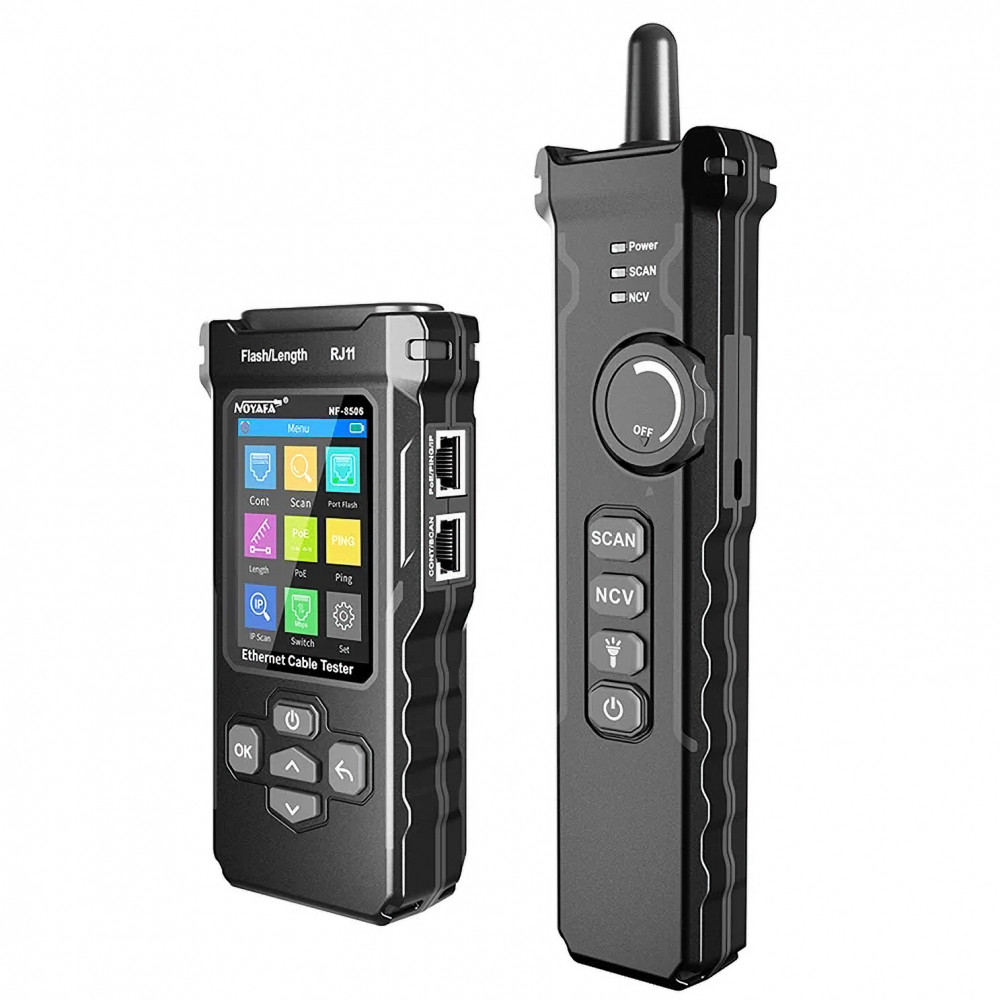

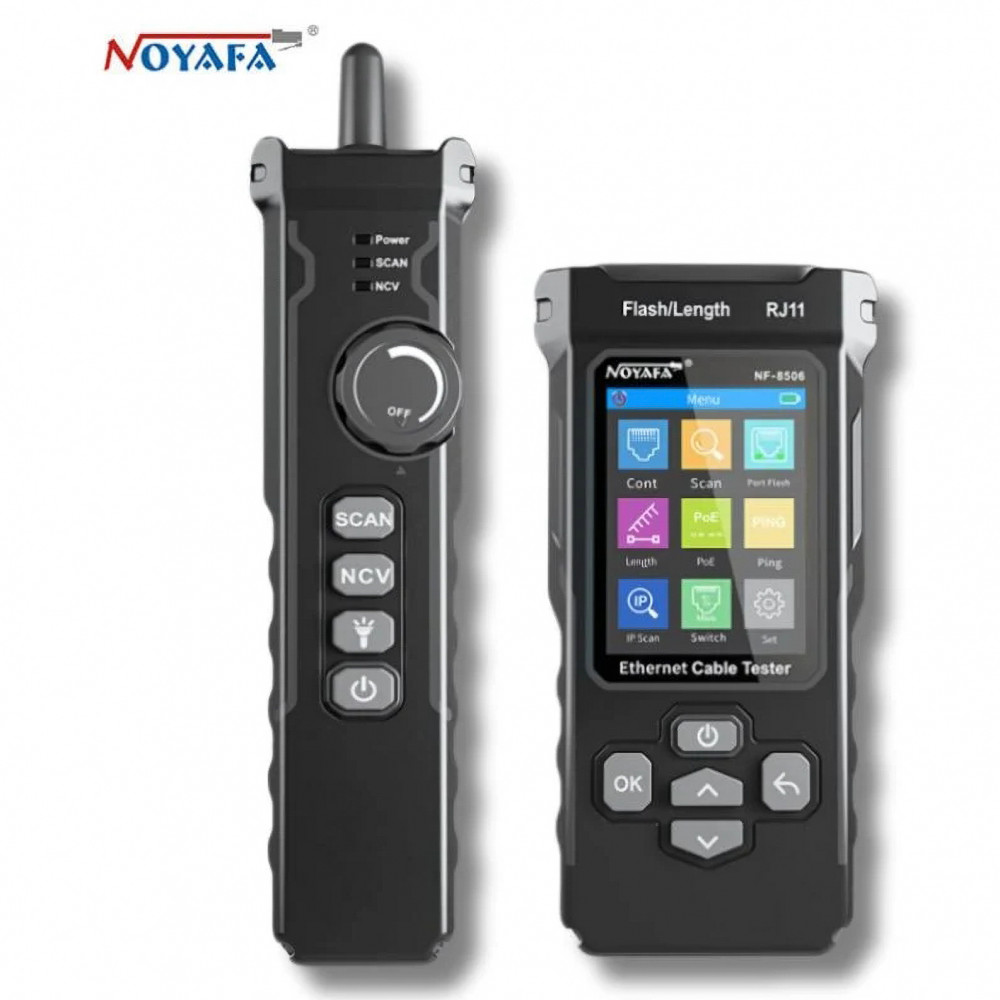

NOYAFA NF-8506 Multifunction Cable Tester

The NOYAFA NF-8506 is designed for testing, tracing, and maintaining network and telephone cables. It combines cable tracing, wire mapping, cable length measurement, PoE and PING testing, IP scanning, port flashing, non-contact voltage detection, and LED lighting in one compact device.

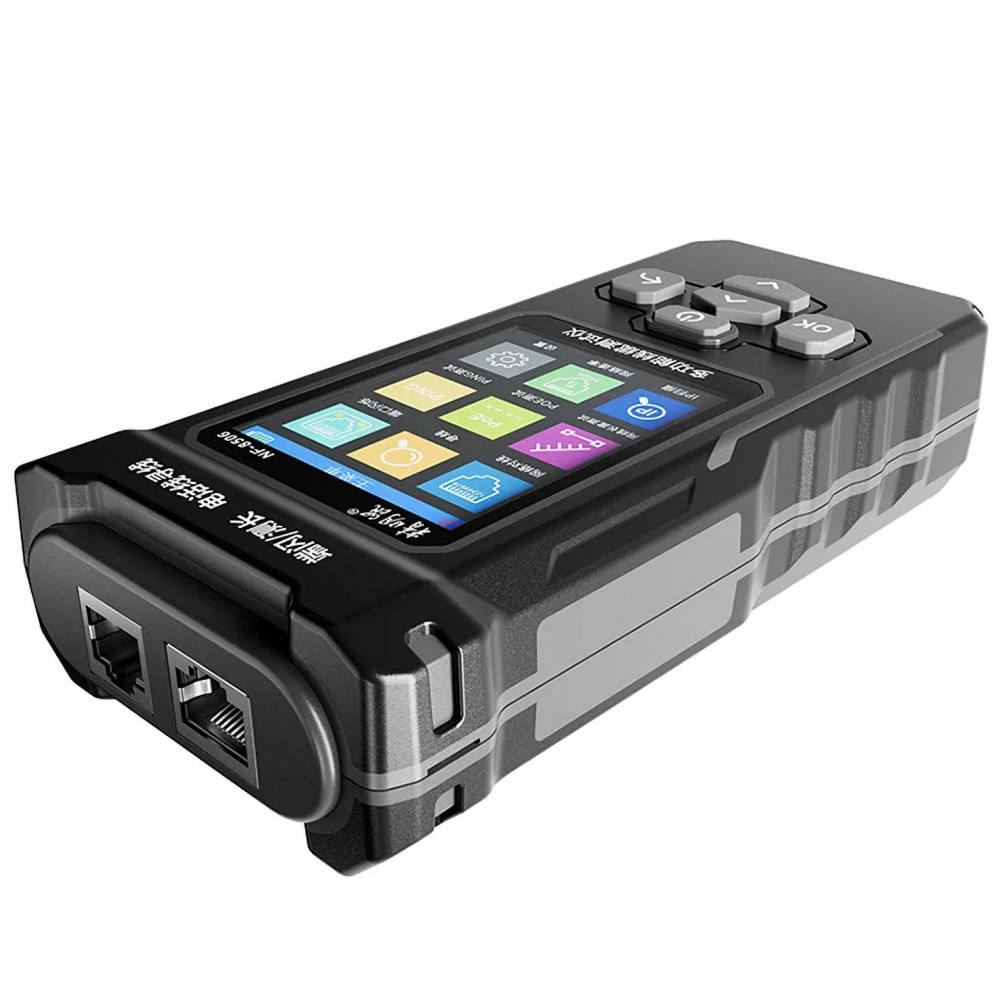

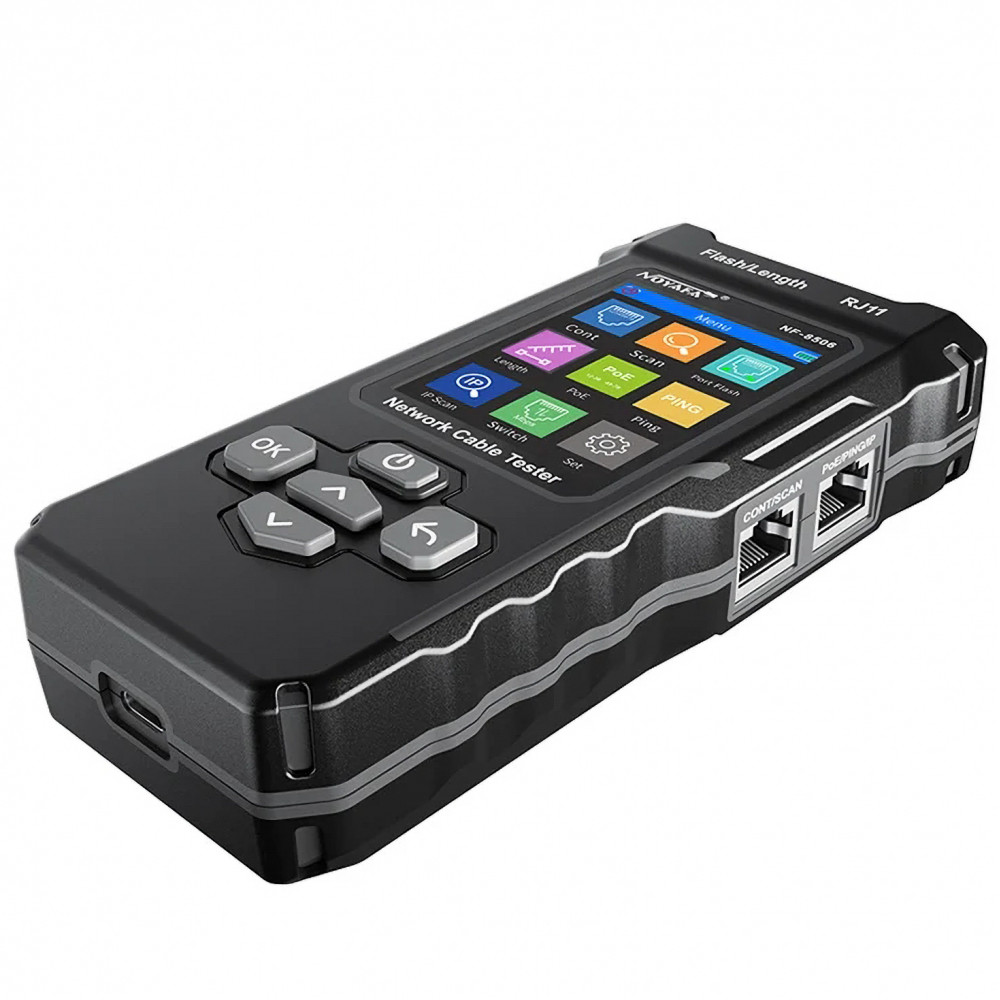

The tester supports Cat5, Cat5e, Cat6, and Cat6a cables. RJ45 and RJ11 ports allow it to test both network and telephone cables, while the HD color screen clearly displays the test results.

Key features

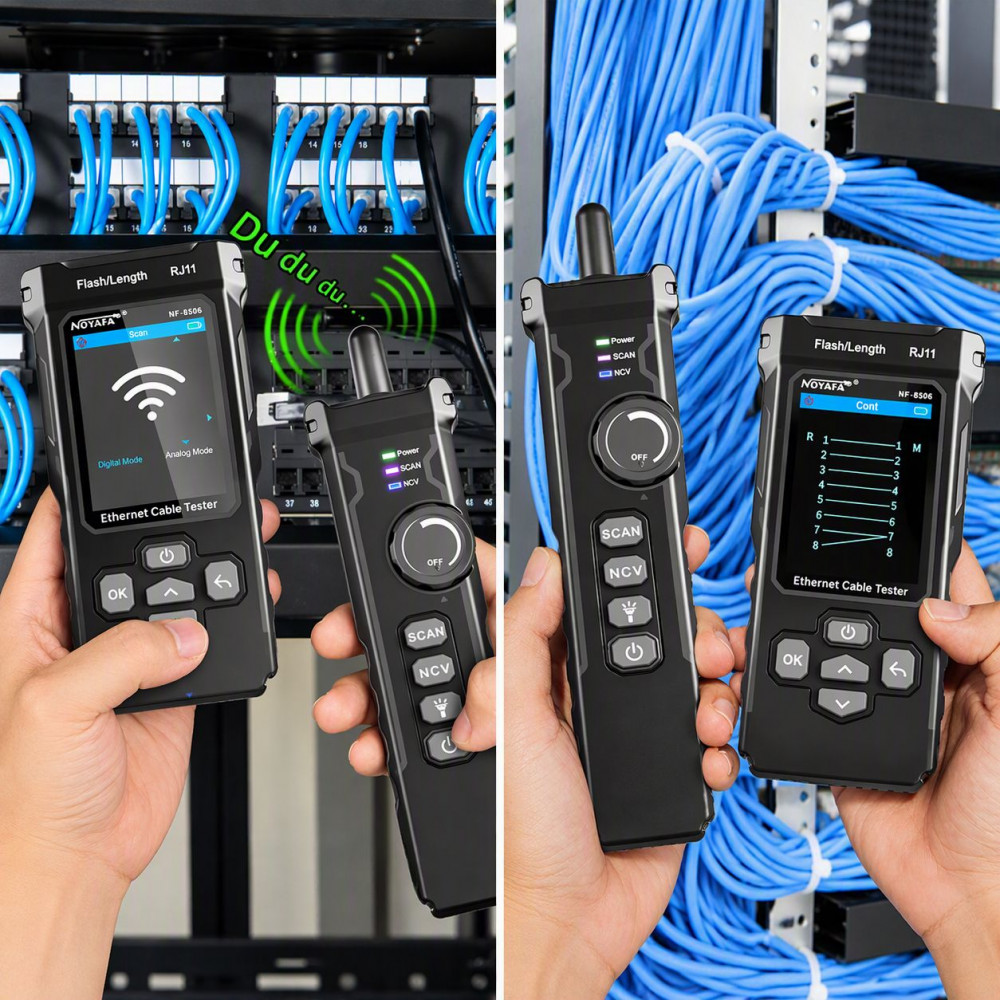

Cable tracing: Analog and digital signal modes help quickly locate a target cable. The device can trace both shielded and unshielded network cables.
Wire mapping: Checks the cable wiring sequence and identifies faults such as open circuits, short circuits, and crossed wires.
Cable length measurement: Measures network cable lengths from 2.5 to 200 meters, or approximately 8 to 656 feet.

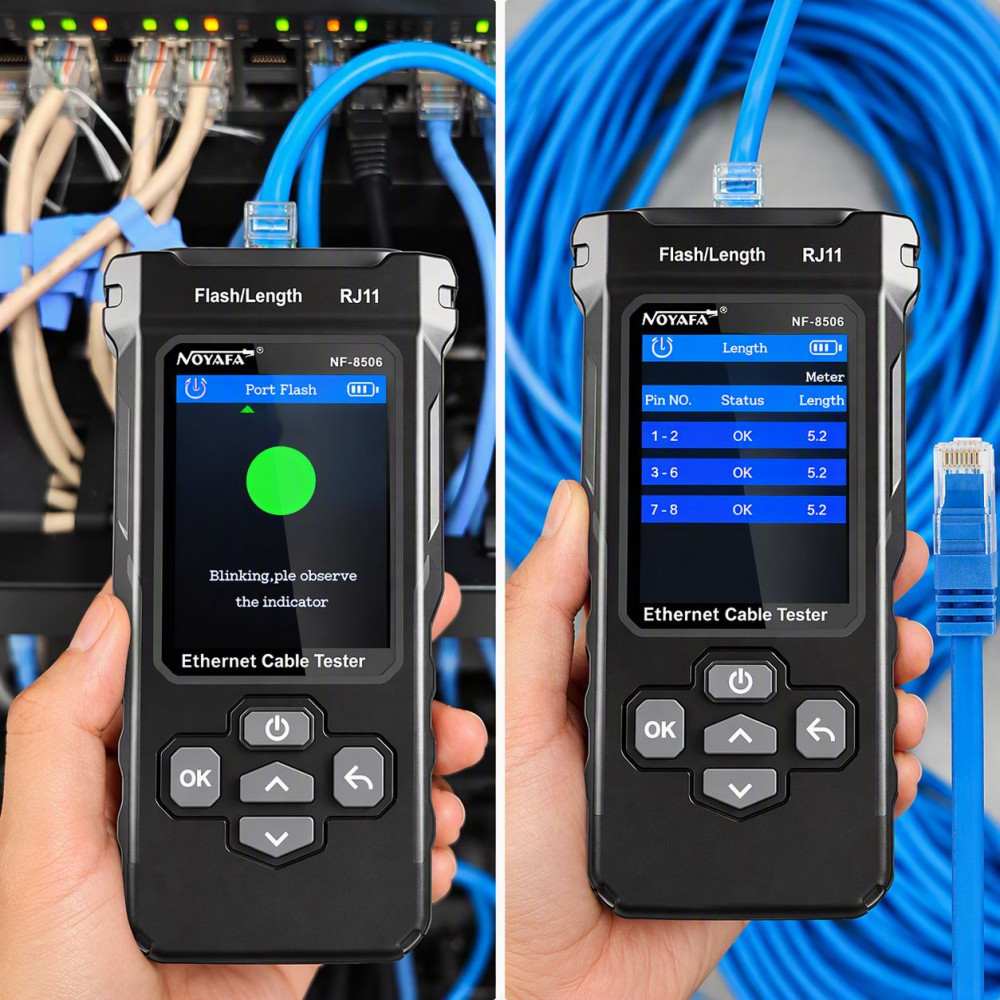

Port Flash: Helps identify the connected switch or router port by its flashing indicator. It also provides information about the port’s operating speed and duplex mode.

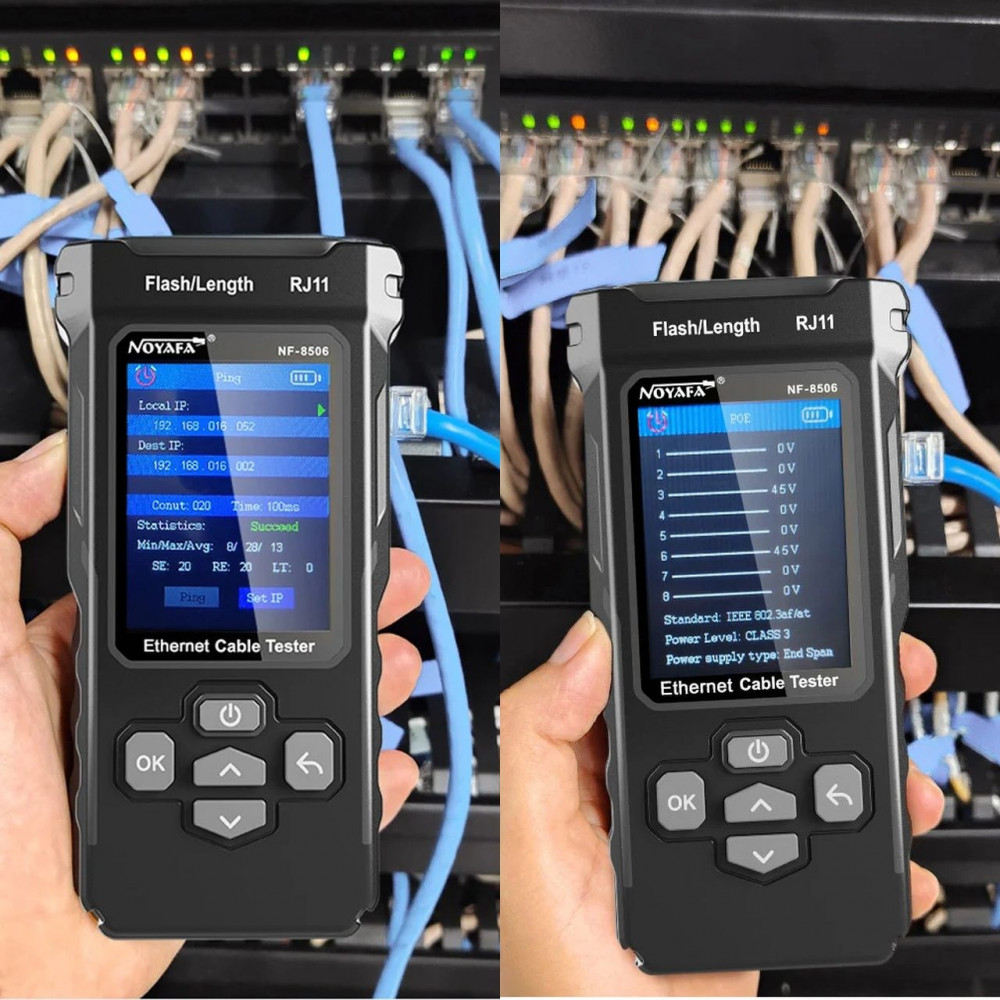

PoE testing: Detects power voltage, power class, and power supply type. It supports non-standard PoE, IEEE 802.3af, IEEE 802.3at, and BT, as well as Mid-span, End-span, and AT four-pair configurations.
PING testing: Displays sent, received, and lost packet values to help check network performance.
IP scanning: Includes an IP Scan function for network testing.

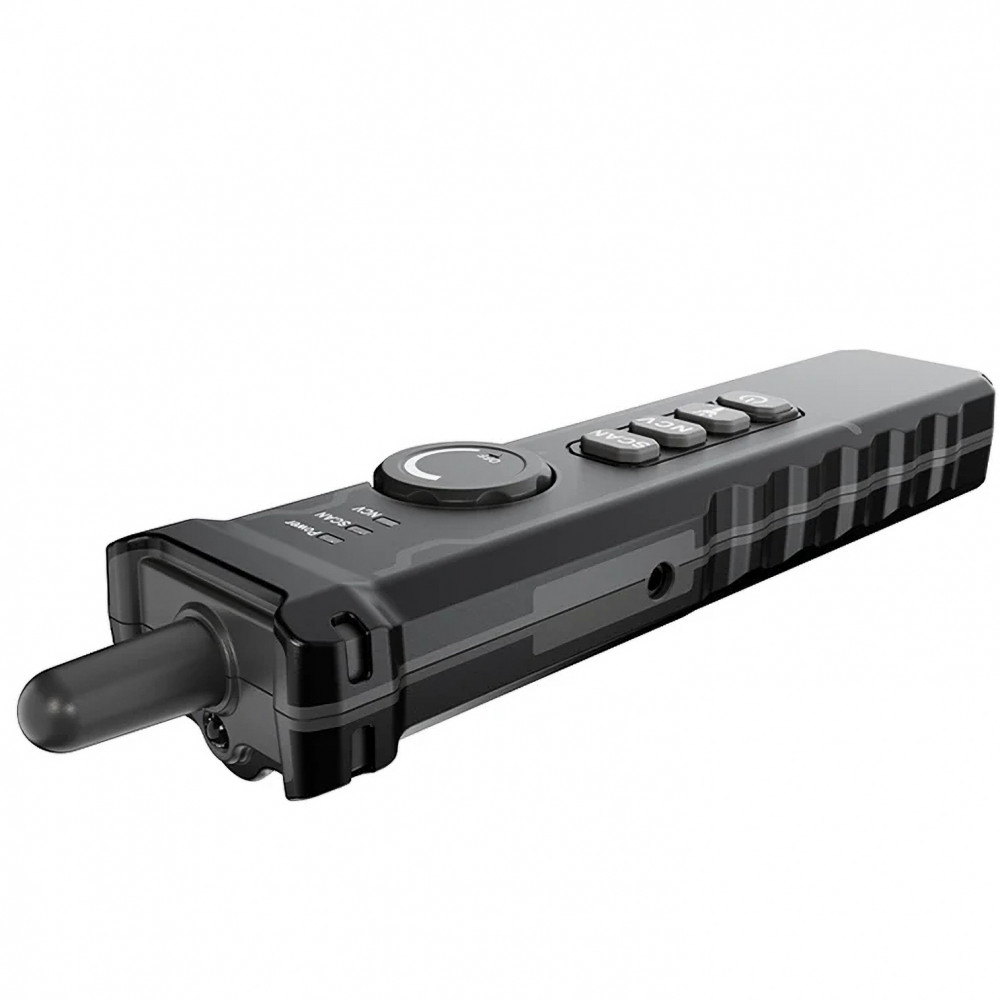

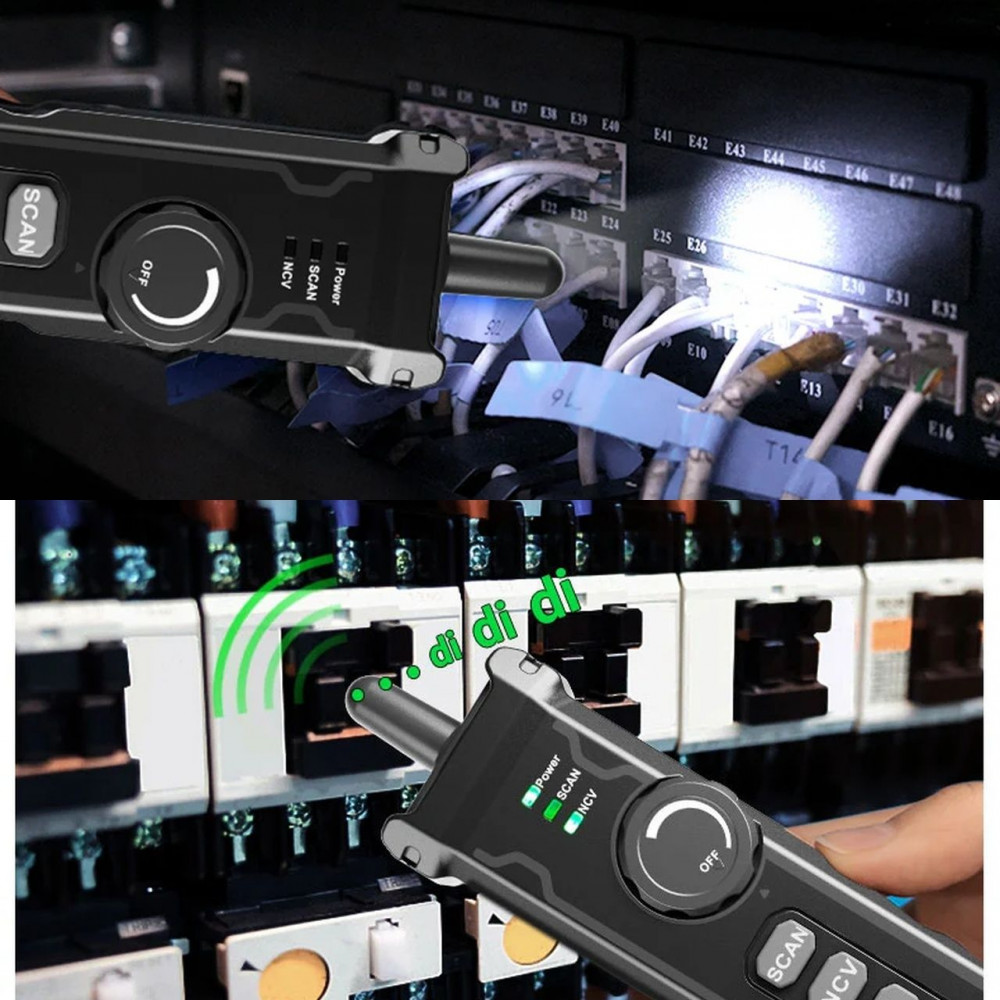

Non-contact voltage detection: The receiver’s NCV function helps detect whether a port or line is live.

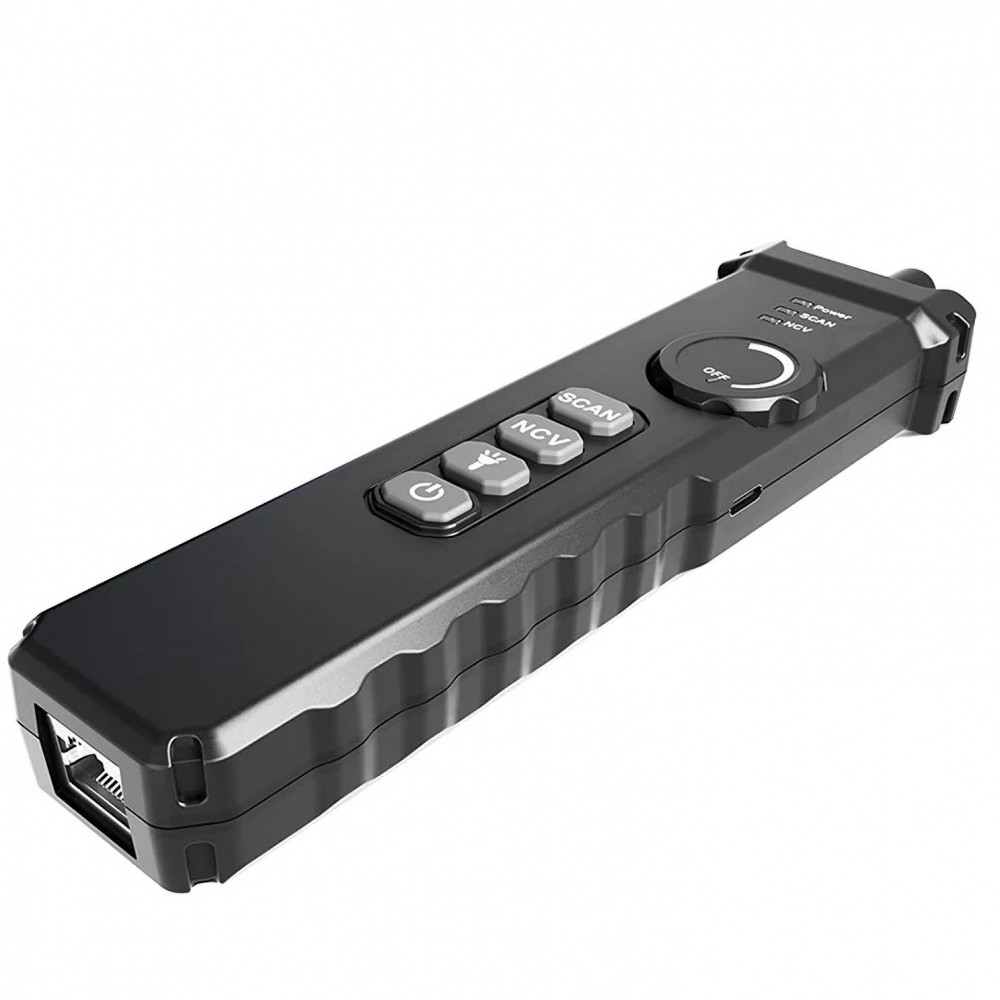

LED lighting: A built-in LED light on the receiver supports work in dark or poorly lit environments.

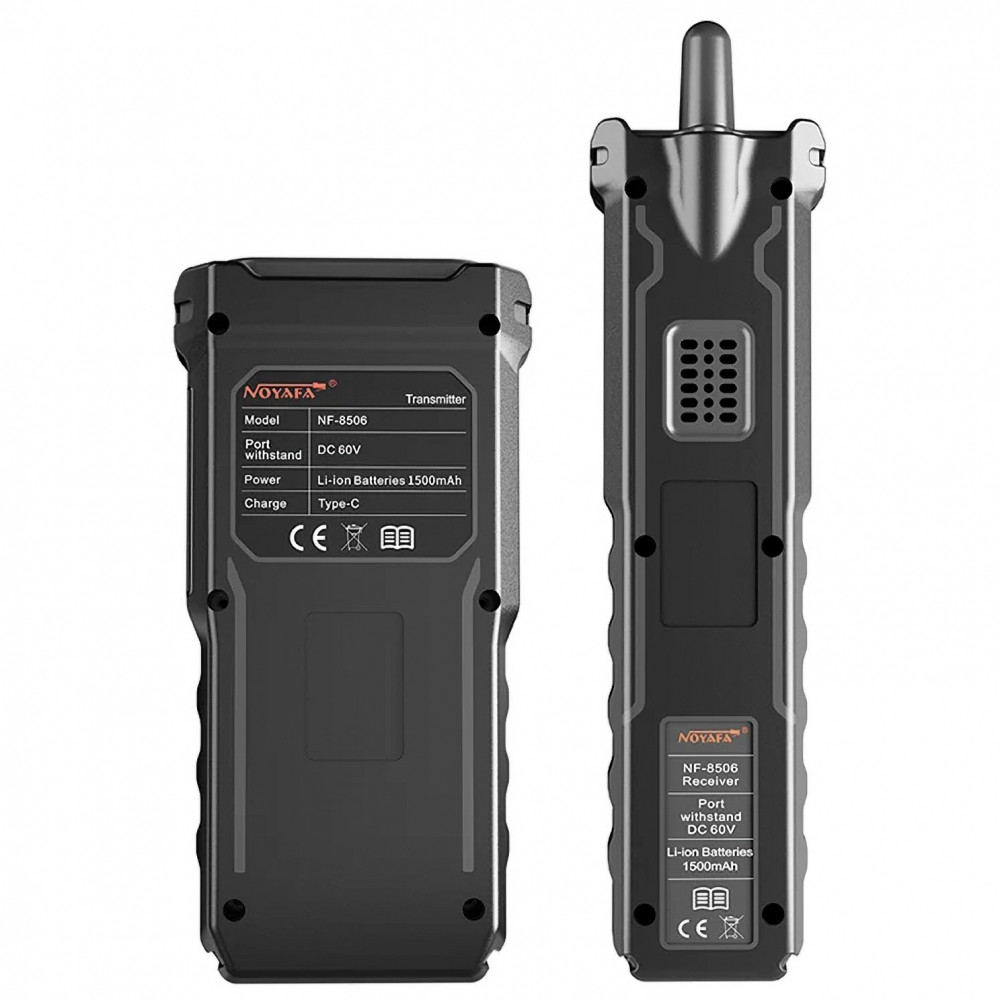

Rechargeable battery: The tester features a rechargeable lithium battery and USB Type-C charging.

The NOYAFA NF-8506 brings essential cable testing and tracing functions together in one compact unit for network, equipment, and cable infrastructure maintenance.
