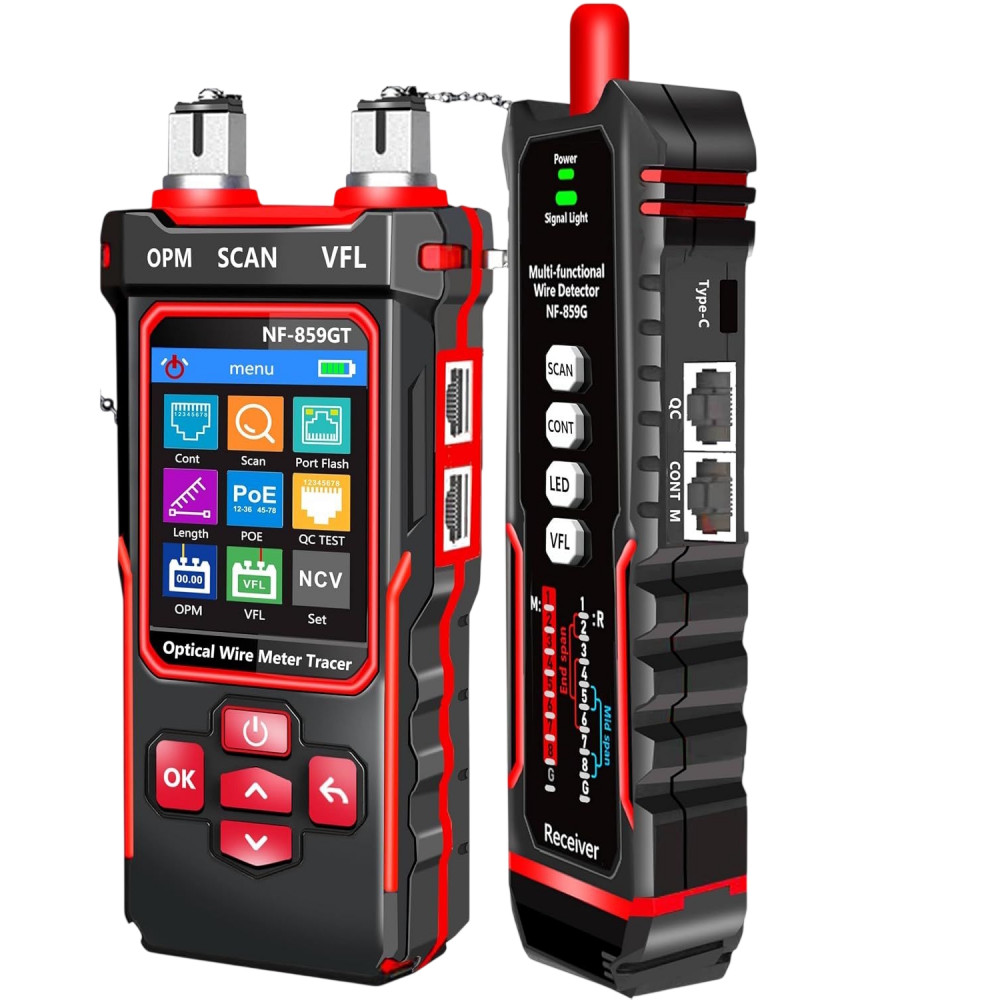

PrintNOYAFA NF-859GT – 10-in-1 Professional LAN & Fiber Cable Tester

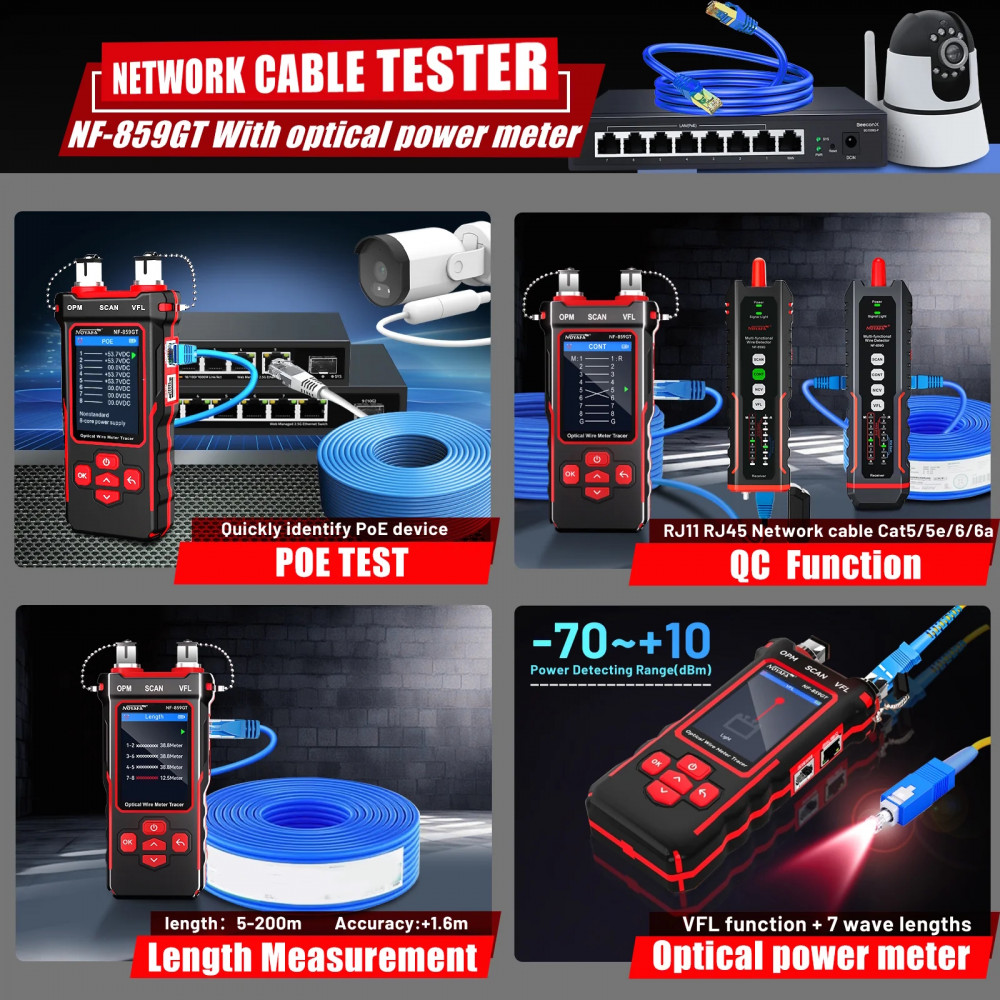

NOYAFA NF-859GT is a powerful multifunction cable tester designed for installation, maintenance, and troubleshooting of Ethernet and fiber optic networks. Combining advanced testing, tracing, and diagnostic capabilities in a single portable device, it helps network engineers and technicians work faster and more efficiently.
The tester integrates cable tracing, wire mapping, cable length measurement, PoE testing, crimp verification, port flashing, optical power measurement, and fiber fault location into one compact solution. Its large color display provides clear and detailed test results for quick fault identification and network diagnostics.
- Cable tracing and identification for network and telephone lines.
- Wire mapping and continuity testing.
- Detection of opens, shorts, crossed pairs, and wiring faults.
- Cable length measurement.
- Standard and non-standard PoE testing.
- RJ45 connector crimp quality verification.

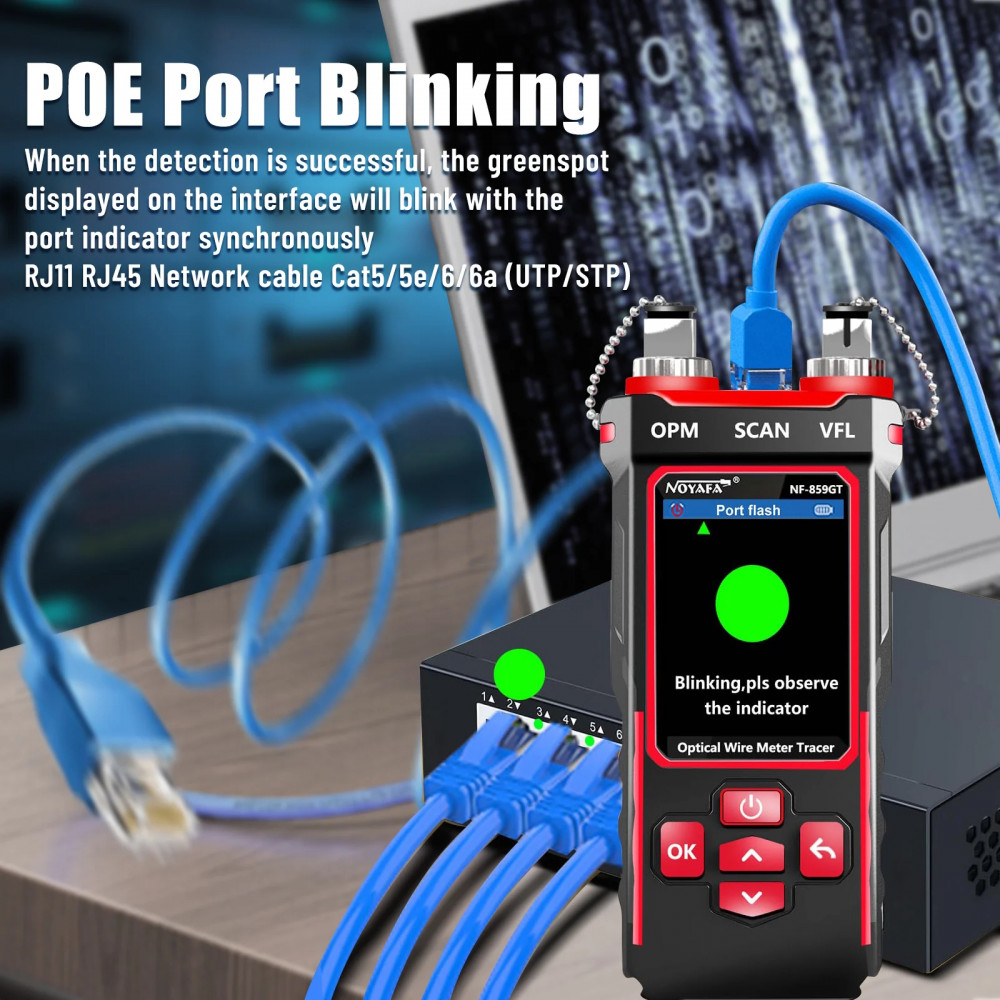

- Network switch port identification (Port Flash).
- Optical Power Meter (OPM).
- Visual Fault Locator (VFL).
- Built-in LED flashlight for low-light environments.
Main Advantages

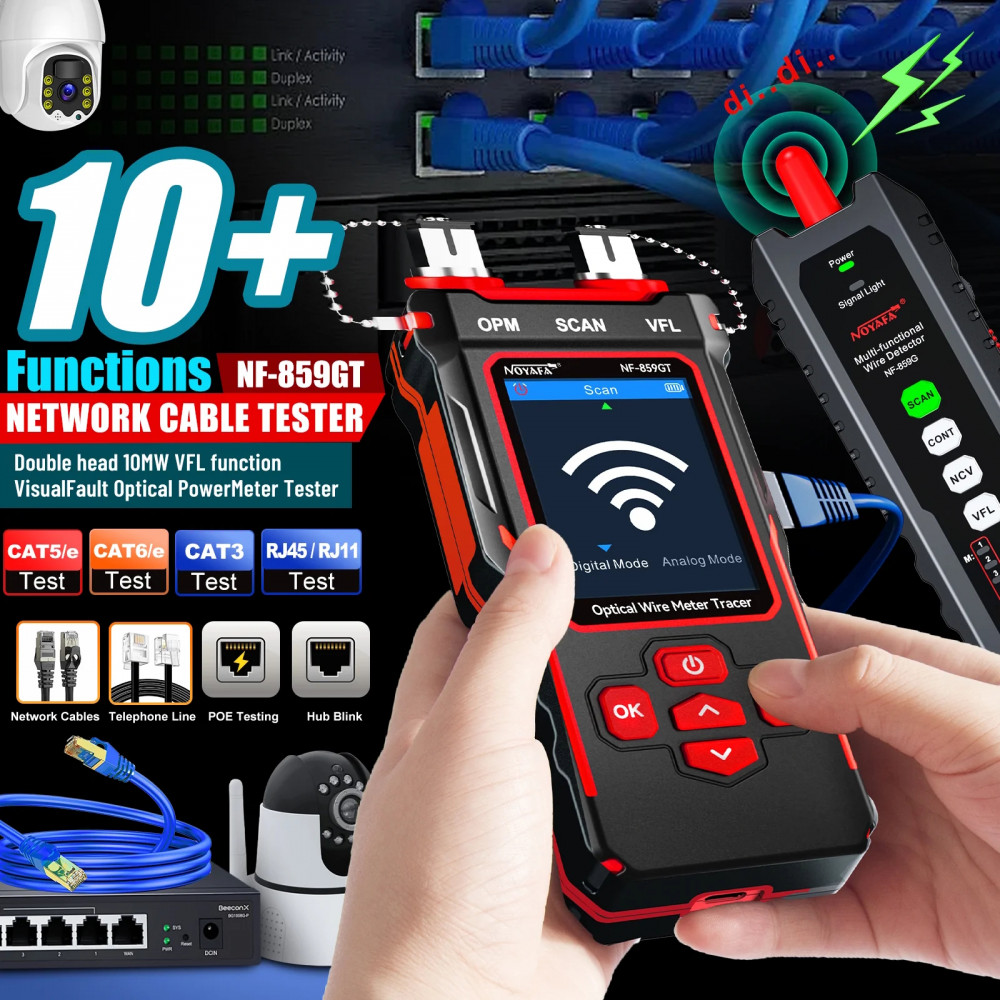

10-in-1 Multifunction Design
The NF-859GT combines multiple diagnostic tools into a single device, reducing equipment costs and simplifying installation and maintenance workflows.
Upgraded Receiver Unit
The enhanced receiver supports wire mapping, cable tracing, PoE testing, VFL operation, crimp testing, and flashlight functionality, reducing the need to move between cable endpoints during testing.
Wide Cable Compatibility
Supports RJ11, RJ45, CAT5, CAT5e, CAT6, CAT6A, telephone cables, and fiber optic cables, making it suitable for a wide range of networking applications.
Accurate Cable Length Testing
Measures cable length from 5 to 200 meters, helping technicians locate faults and verify installations quickly and accurately.

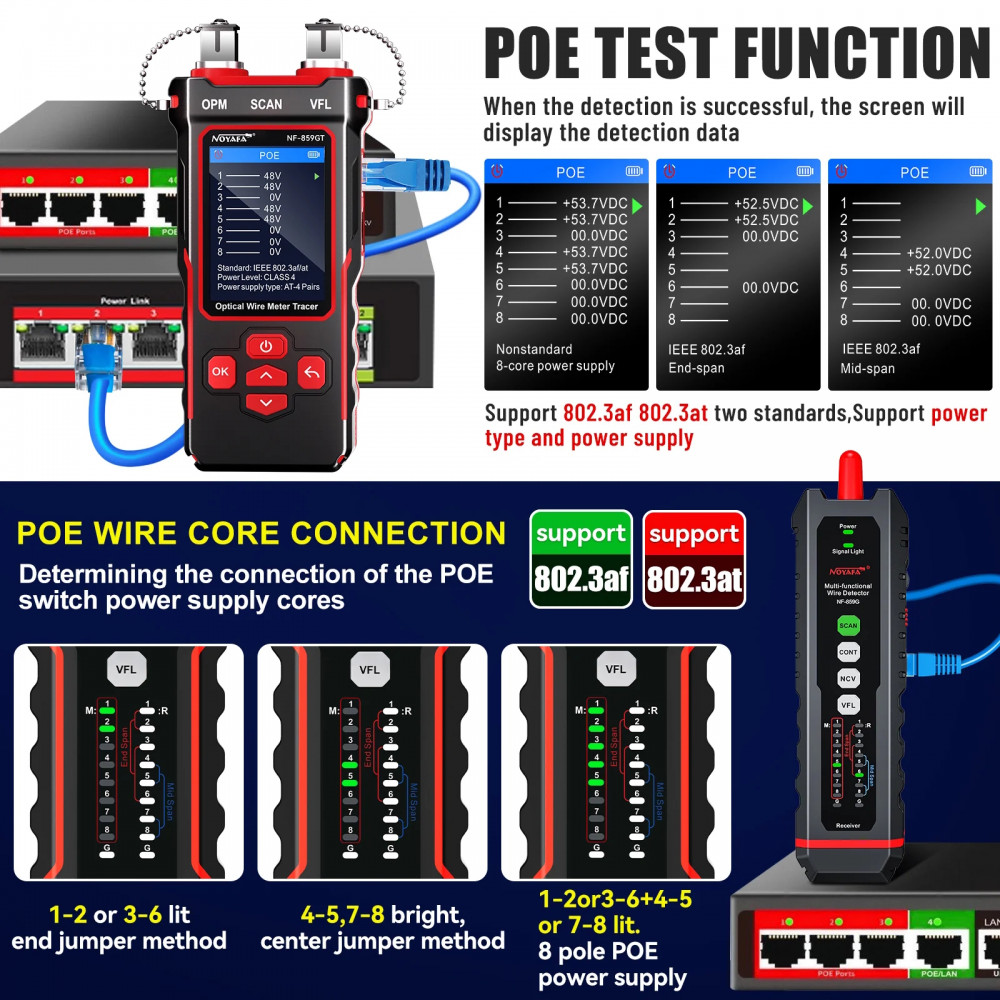

Advanced PoE Analysis
Identifies PoE voltage, power pairs, End-span and Mid-span configurations, and supports IEEE 802.3af/at standards as well as non-standard PoE devices.

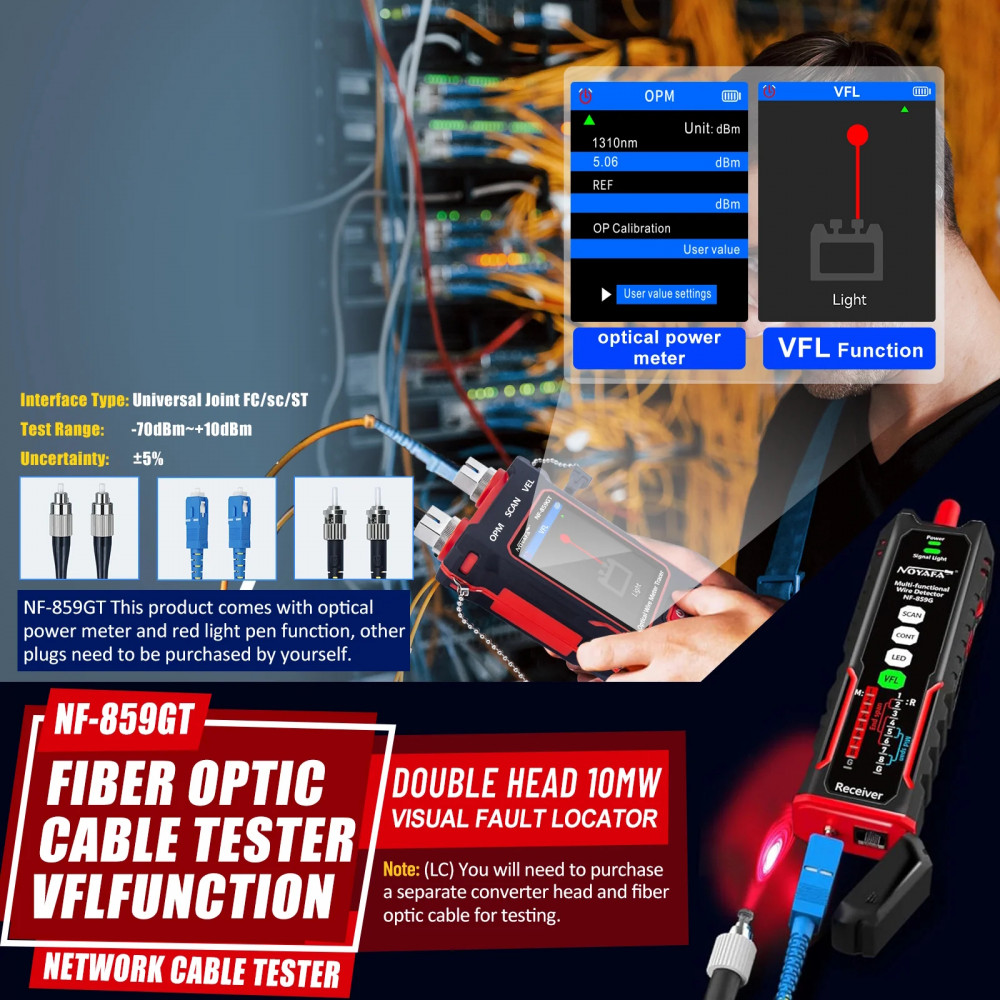

Optical Power Meter (OPM)
Supports optical power testing at 850, 1300, 1310, 1490, 1550, and 1625 nm wavelengths, making it suitable for fiber optic installation and maintenance tasks.

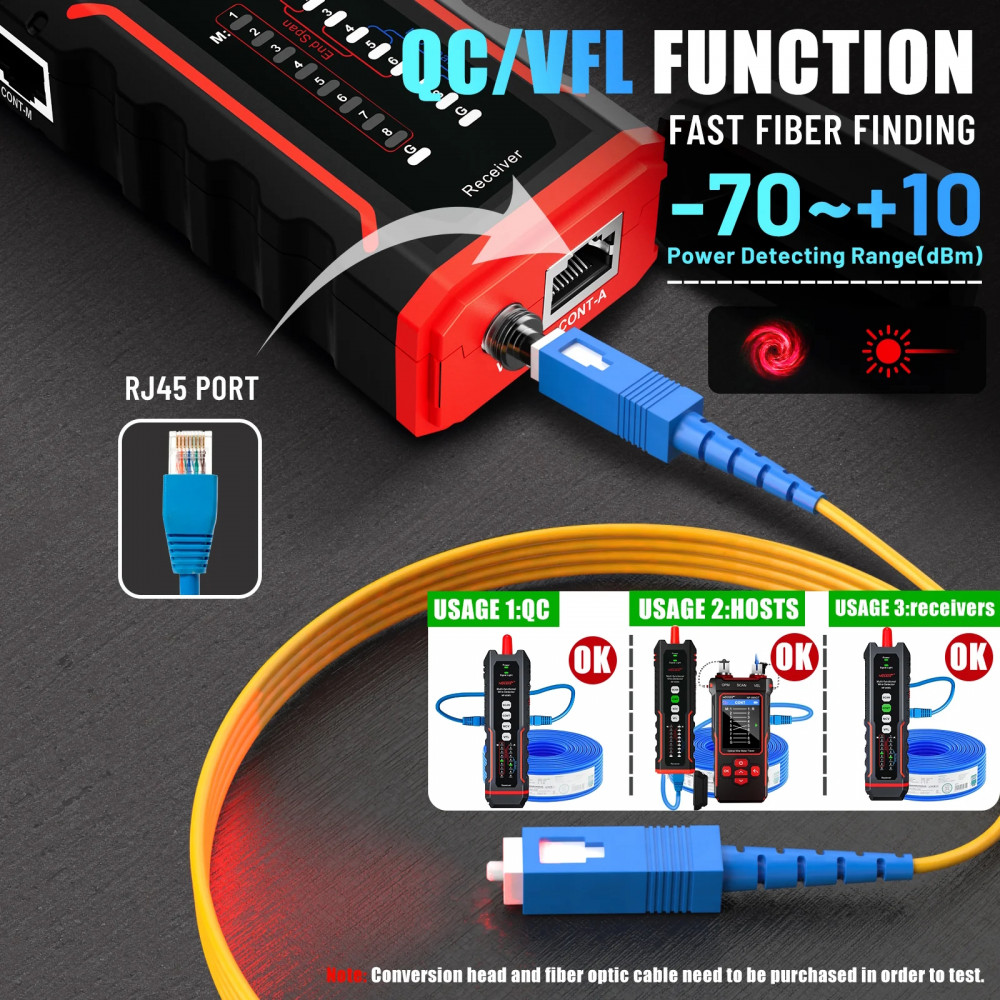

10mW Visual Fault Locator (VFL)
The built-in red laser source helps quickly identify fiber breaks, bends, and other faults. Continuous, slow flash, and fast flash modes are supported.
Anti-Interference Cable Tracing
Digital anti-interference mode improves tracing accuracy in electrically noisy environments and on active network cables.
Technical Specifications
- Model: NOYAFA NF-859GT
- Display: Color LCD screen
- Cable Length Measurement Range: 5-200 m
- Cable Tracing Modes: Digital and Analog
- Maximum Cable Tracing Distance: Up to 300 m
- PoE Voltage Test Range: 5-60 V
- PoE Standards: IEEE 802.3af / IEEE 802.3at
- Network Port Speed Detection: 10/100/1000 Mbps
- Optical Power Meter Wavelengths: 850 / 1300 / 1310 / 1490 / 1550 / 1625 nm
- Visual Fault Locator Power: 10 mW

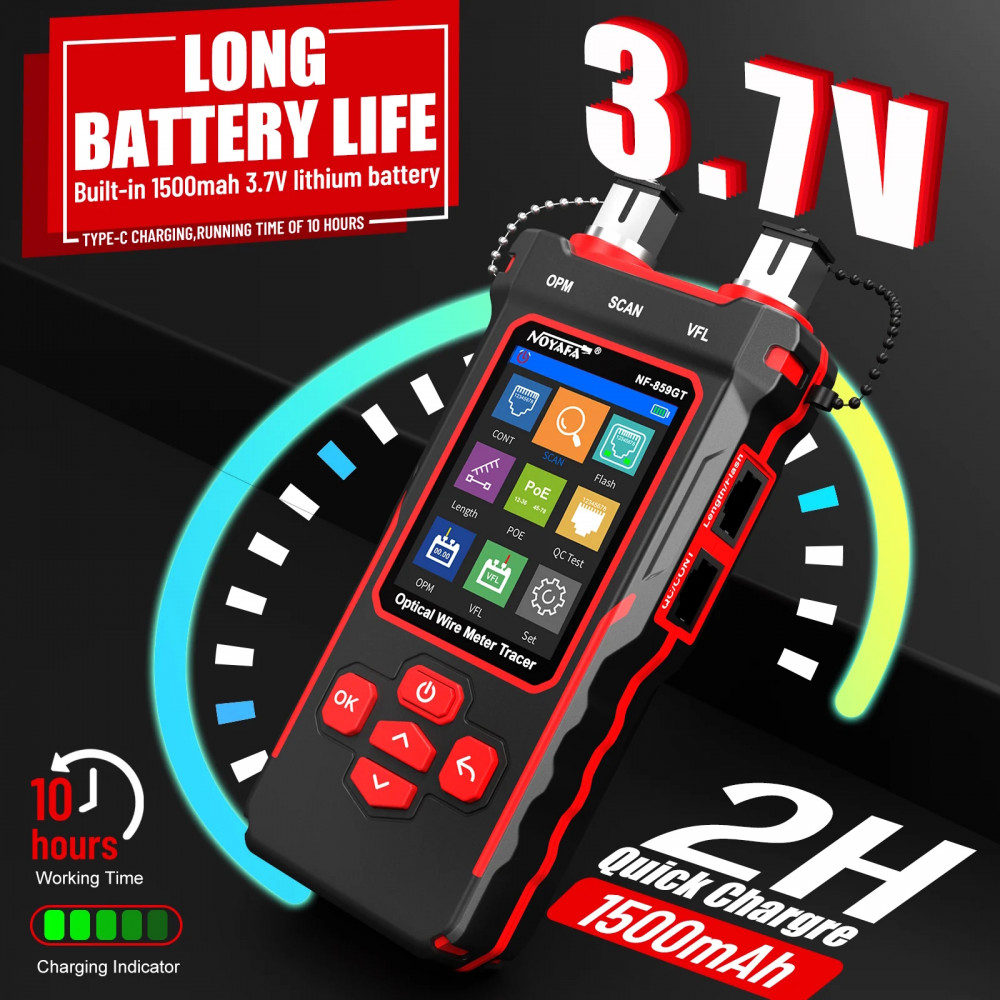

- Battery: 3.7V 1500mAh rechargeable lithium battery
- Charging Port: USB Type-C
Applications
The NOYAFA NF-859GT is ideal for network installers, IT technicians, telecom engineers, Internet service providers, data centers, CCTV installers, and fiber optic specialists. It is designed for cable installation, maintenance, troubleshooting, and verification of Ethernet and fiber optic infrastructure in both commercial and industrial environments
