PrintDescription

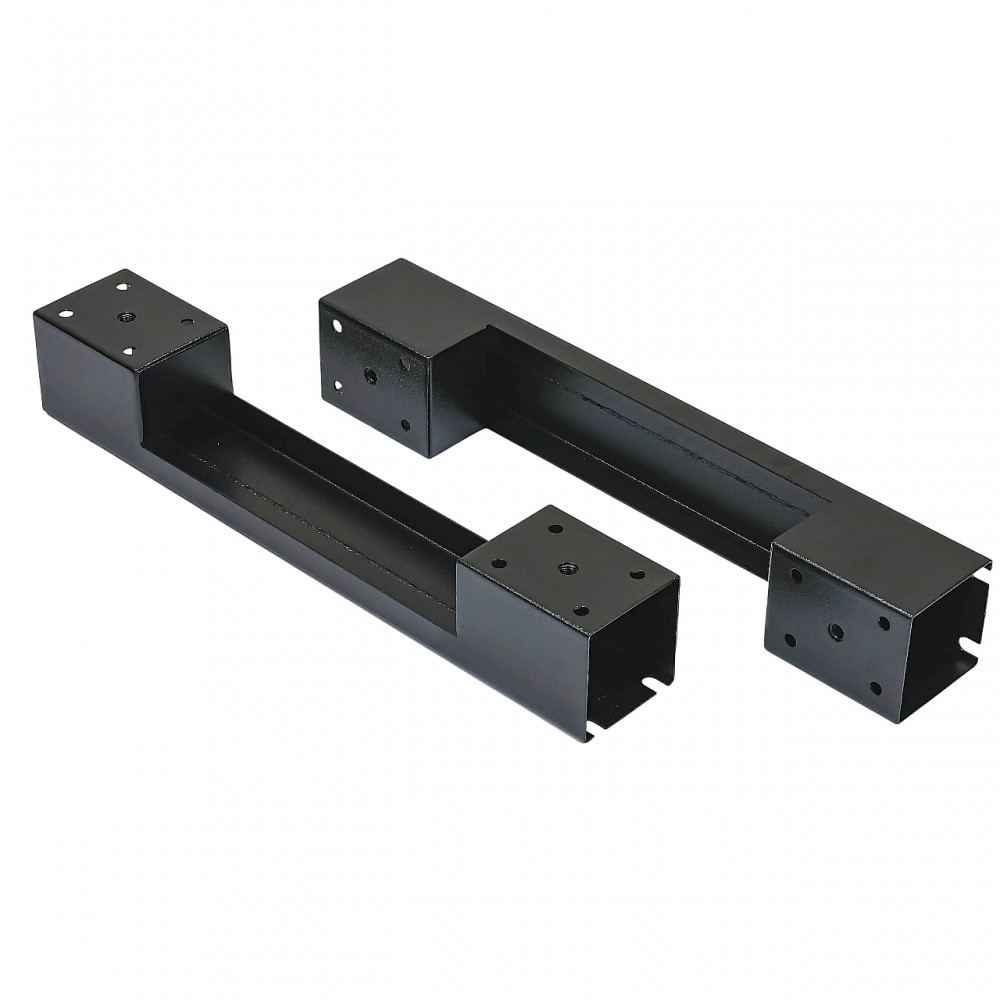

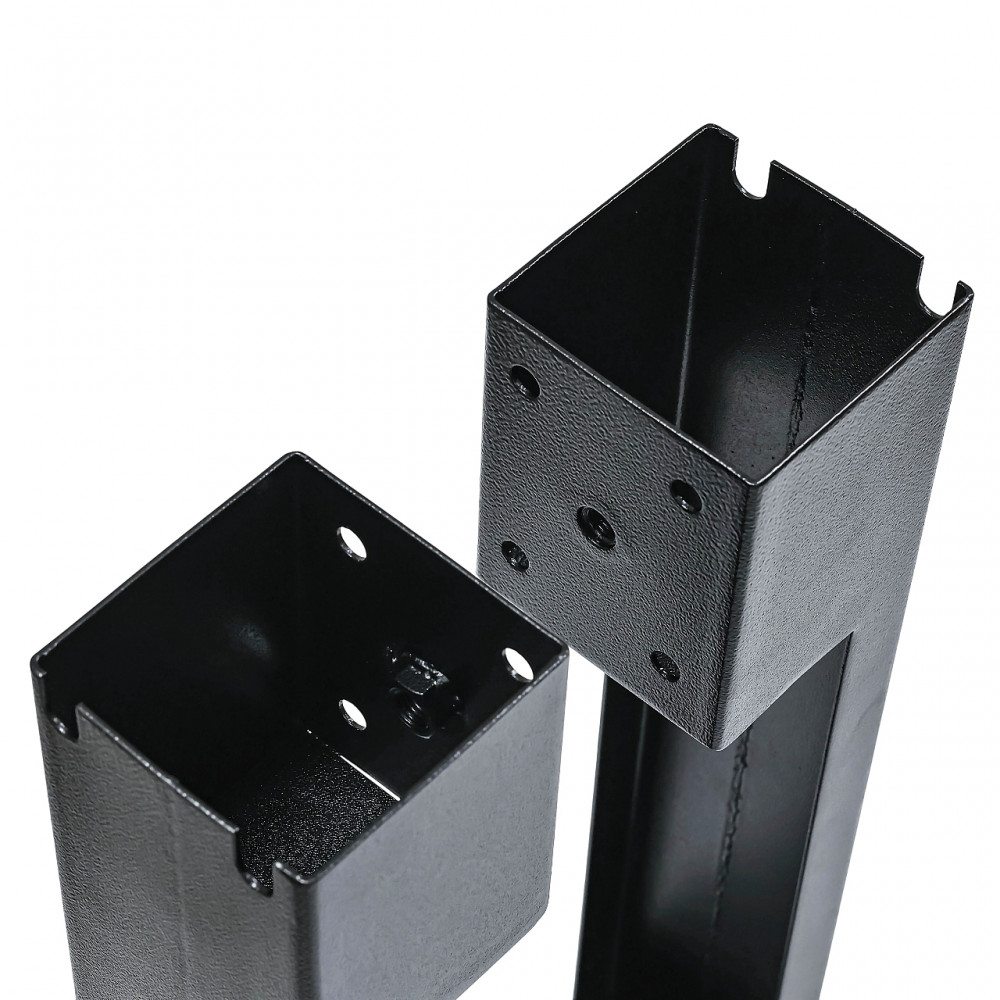

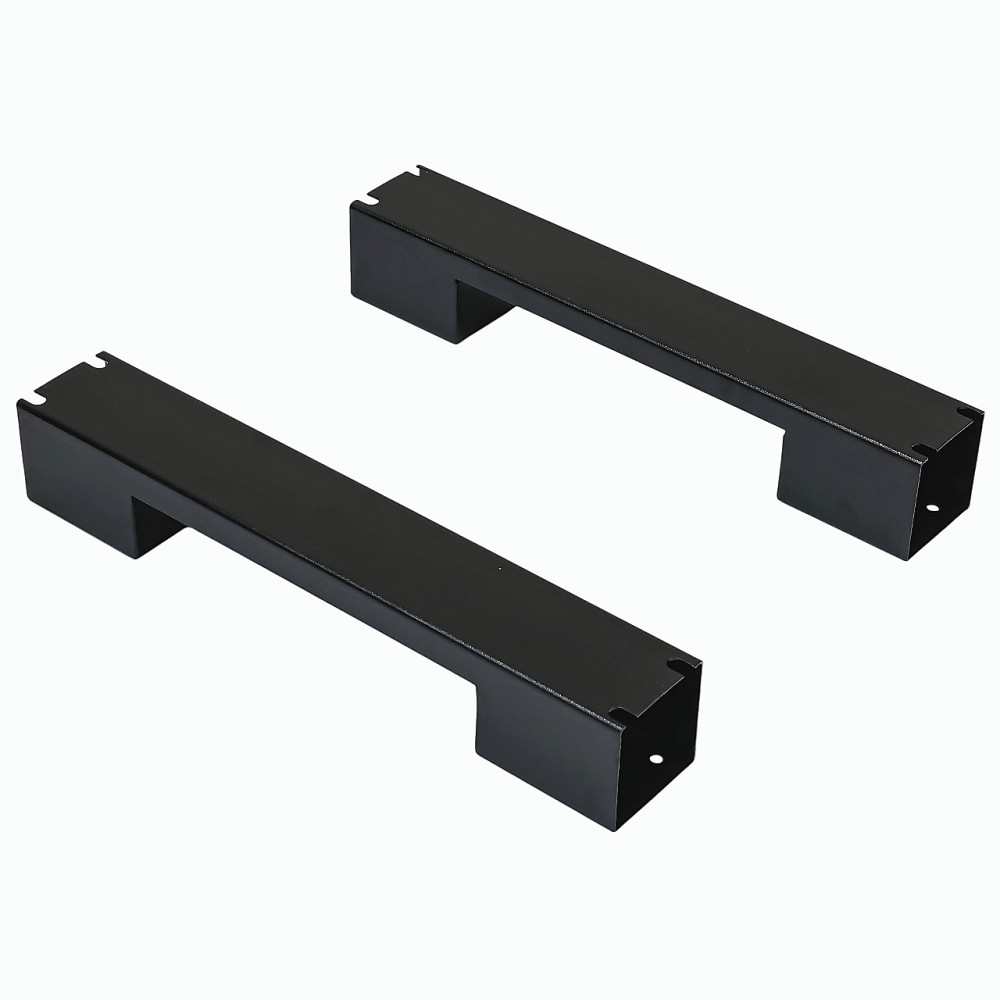

The base is used to raise the cabinet from the floor by 100 mm, allowing for easier access for cables from the floor. The kit consists of two parts, one for the front and one for the rear. It is positioned under the bottom frame of the rack and secured with screws to the standard support mounting points. Screws are not included.
The product has space for standard support mounting points and can be equipped with wheels on the platform.

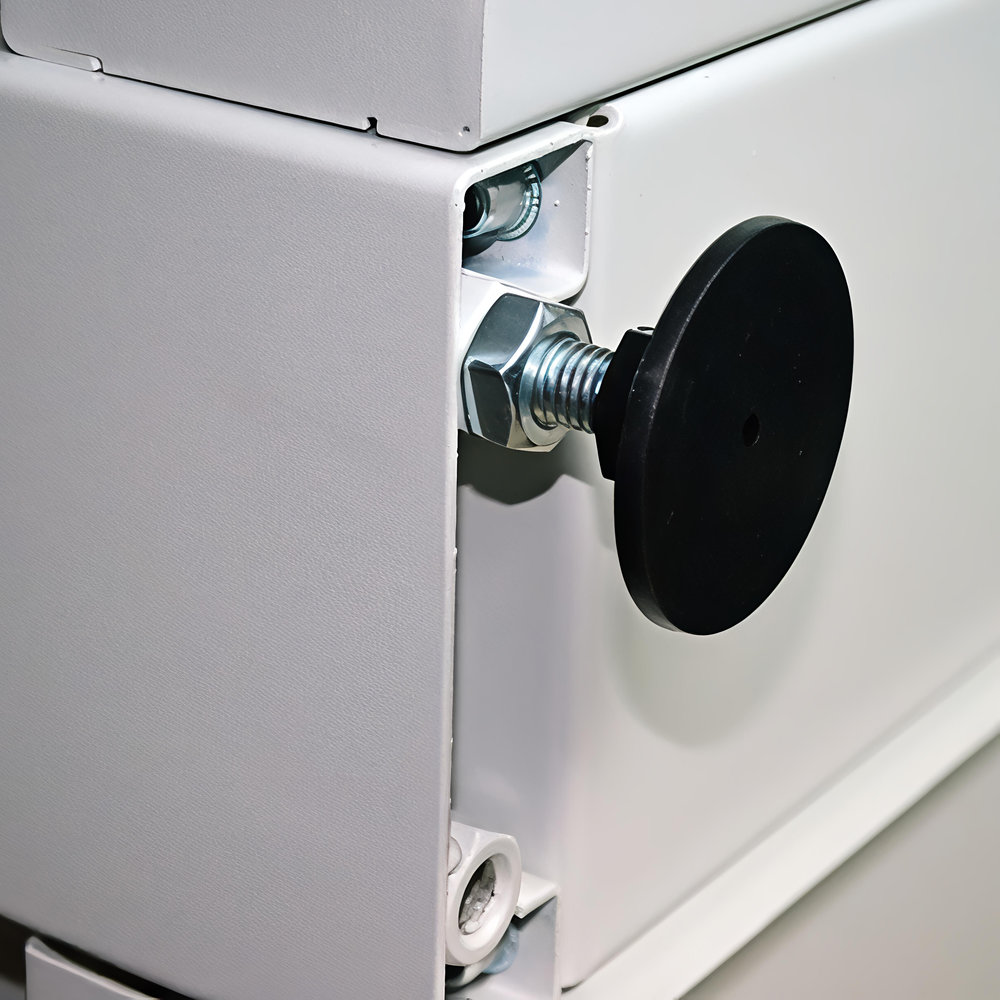

To attach to a server cabinet, 8 M10 screws are required (fixed at the mounting points for standard legs)

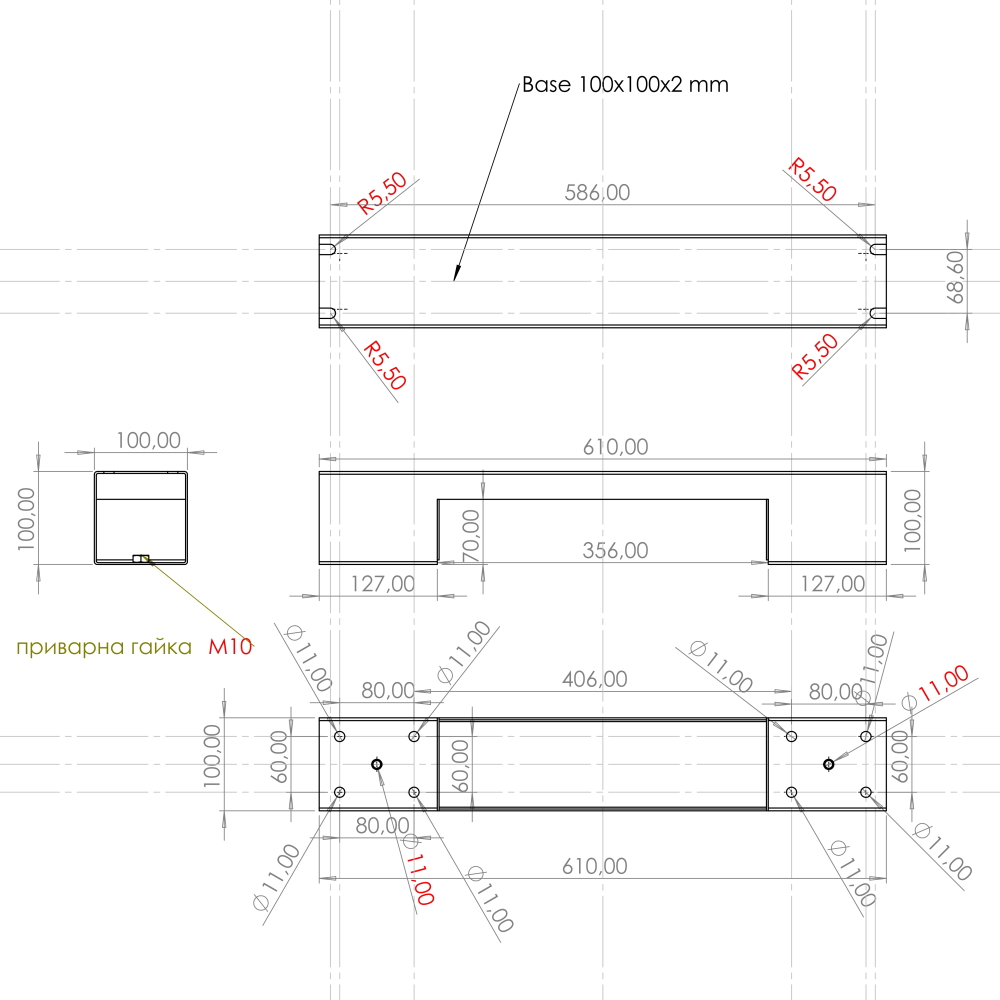

- Material: 2 mm steel
- Welded nut: M10
- Wheel holes: 11 mm
- Width: 610 mm
- Height: 100 mm
- Welded construction
- Color: Black
- Powder coating
- Includes: 2 welded bases
- For MGSE series server cabinets, 610 mm wide
