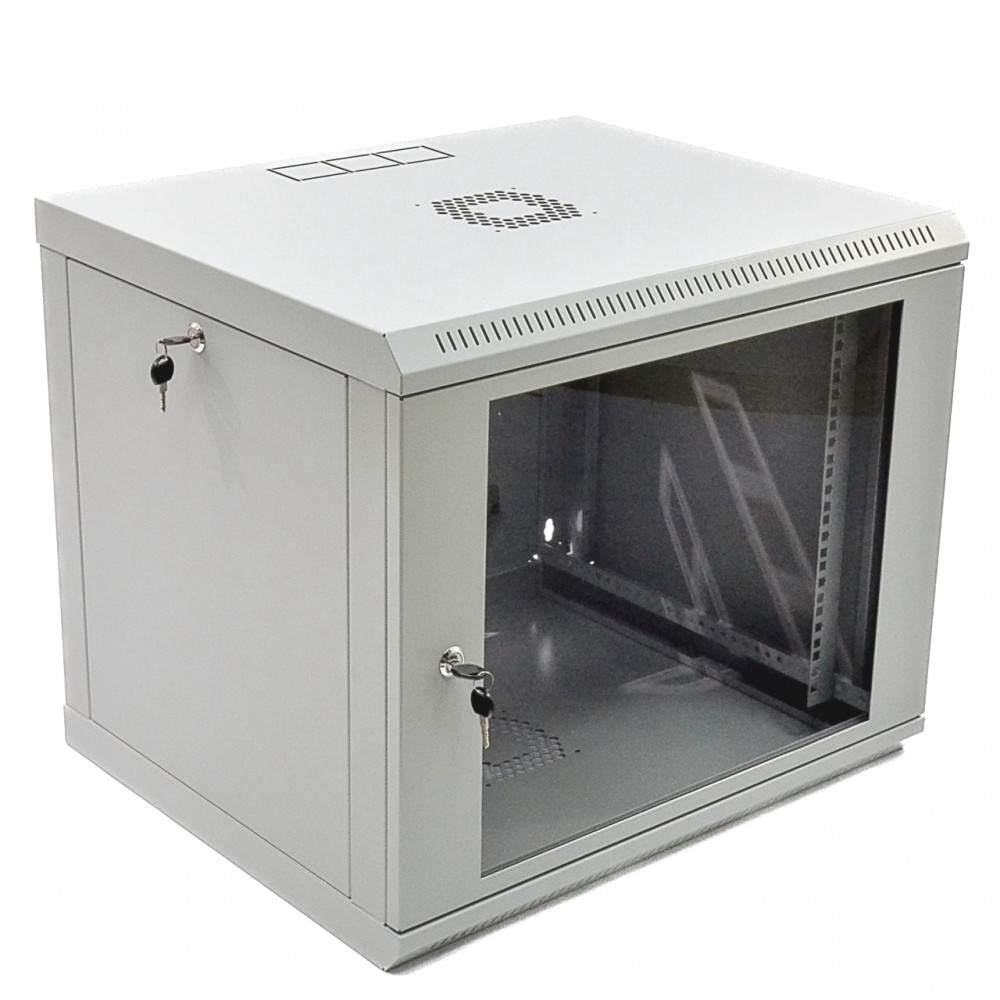

Wall-mounted server cabinet 9U, 600x600x507 mm (WxDxH), L-type, acrylic glass, Gray

The 19"  MGSWL series patch cabinet from CMS has a lightweight metal structure and is used to build SCS, fiber-optic communication lines, video surveillance systems and access control systems. The cabinet accommodates patch panels that are connected to active network equipment using copper and optical patch cords. The guides are located at a distance of 19 inches (482.6 mm) and are adjustable in depth, which allows you to configure it for a specific type of equipment. The design of the patch cabinet includes eight main elements, which allows one person to assemble it in 15-30 minutes, regardless of the number of units in height.

Characteristics:

• Type: Wall cabinet 19″
• Height: 9U
• Height, mm: 507
• Depth, mm: 600
• Width, mm: 602
• Construction, inch: 19
• Useful depth, mm: 560
• Front door: with transparent acrylic glass
• Guides: one pair without unit marking
• Color:  Gray
• Metal thickness, mm: (walls 0.8, frame 1.5, rack 1.5)
• Recommended load, kg: 70
• Weight, kg: 20
• Packaging size, cm: 65x67x22

Delivery set:

• Frame (2 elements)
• Back panel (1 element)
• Side doors (2 elements)
• Top and bottom panel (2 elements)
• Front doors with acrylic glass (1 element)
• 19" rack (1 pair)
• Assembly kit (screws and nuts);
• Locks with key 3 pcs.
