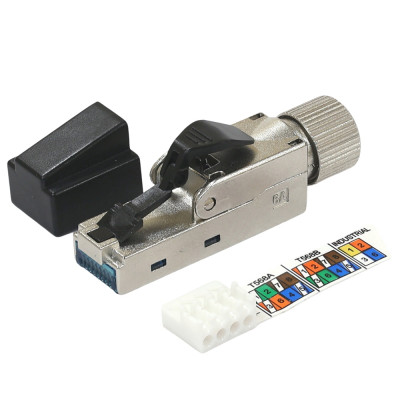

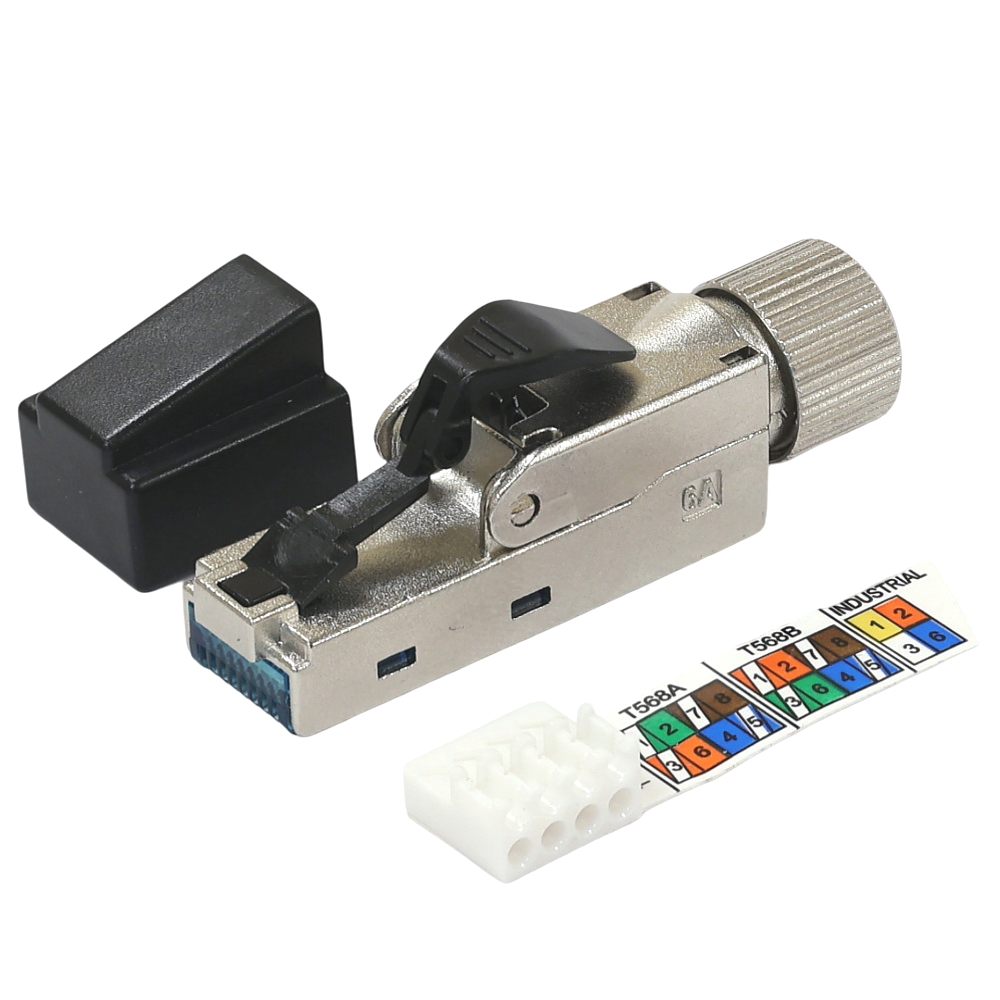

RJ45 field-installable connector Category 6A STP Straight
Product Code: CAXASS-00100-C001
Brands Corning
-1000x1000-1000x1000.jpg "Connectors, STP, cat 6A, Product Code CAXASS-00100-C001 - product image 1")
-1000x1000.jpg "Connectors, STP, cat 6A, Product Code CAXASS-00100-C001 - product image 2")
-1000x1000.jpg "Connectors, STP, cat 6A, Product Code CAXASS-00100-C001 - product image 3")
-1000x1000.jpg "Connectors, STP, cat 6A, Product Code CAXASS-00100-C001 - product image 4")
-1000x1000.jpg "Connectors, STP, cat 6A, Product Code CAXASS-00100-C001 - product image 5")
-1000x1000-400x400.jpg "Connectors, STP, cat 6A, Product Code CAXASS-00100-C001 - image 1")
-74x74.jpg "Connectors, STP, cat 6A, Product Code CAXASS-00100-C001 - image 2")
-74x74.jpg "Connectors, STP, cat 6A, Product Code CAXASS-00100-C001 - image 3")
-74x74.jpg "Connectors, STP, cat 6A, Product Code CAXASS-00100-C001 - image 4")
-74x74.jpg "Connectors, STP, cat 6A, Product Code CAXASS-00100-C001 - image 5")
PrintDescription
The field-installable RJ45 connector is suitable for industrial environments offering outstanding performance for the transmission of digital data signals up to 10GbE. It is used in multiple applications, most commonly telecommunications, Ethernet networking, IP surveillance, factory automation and control. The connector can be used with flex wire cables AWG 23-27 and solid wire cables AWG 23-26.
Features and Benefits
- Compliance with the new Class EA and IEEE 802.3an
- Supports for PoE, PoE+ and UPoE applications
- The connector can be used with flex and solid wire cables
- 0.4 - 0.76 mm (AWG 22-27)
- Providing easy and fast installation without tools
- Re-termination possible for multiple usage
Specifications
- Category 6A
- Halogen-free Yes
- Bandwidth 500 MHz
- Height 16.85 mm
- Width 11.68 mm
- Depth 46.05 mm
- Weight 13 g
- Design And Test Criteria IP20
- Component Standard IEC 60603-7-51 (Edition 1.0 2010)ANSI/TIA/EIA-568-B.2-10
