PrintDescription
MPO (Multi-Fiber Push-On) connector is an optical connector with a multi-fiber tip that has holes for several optical fibers. MPO connectors allow simultaneous connection of several optical fibers, so they are used in networks with a large number of connections (for example, SCS data centers).
MPO(F) Key Up - MPO(F) Key Up Type B
 Key Up - MPO(F) Key Up Type B.jpg)

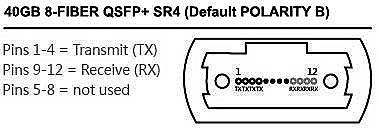

When using the 8-fiber version, pins 5, 6, 7, 8 are not used.

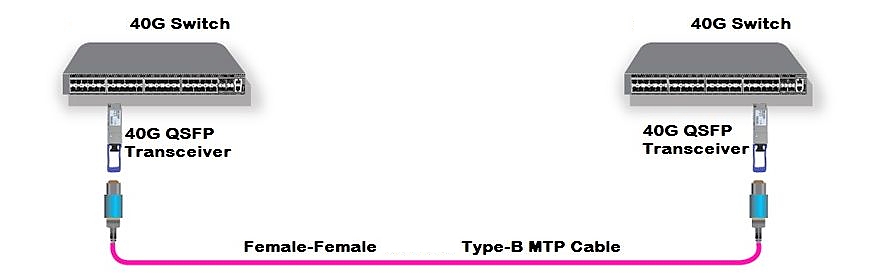

The MPO Type B cable uses a key up connector on both ends. The MPO Type B cable is commonly known as a 40G MPO cable because this cable assembly can be used to directly connect between your 40G QSFP+ optical transceivers
Specifications
- Length 30 m
- Fiber type OM3
- Number of fibers 8
- Cable diameter 3 mm
- Outer sheath LSZH

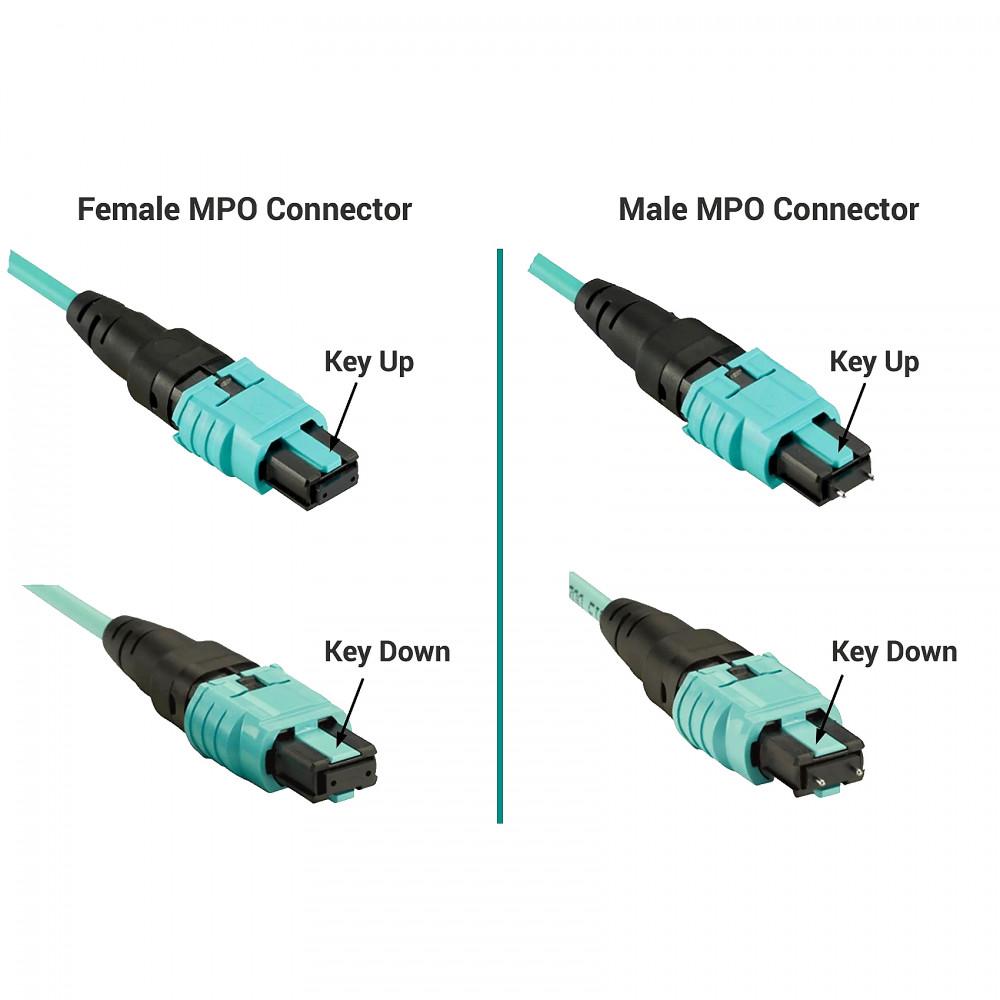

MPO patch cords come in two types: Male and Female. The Male connector has two guide pins protruding from the tip, and the Female connector has holes for these pins. This feature allows you to connect connectors of different types to each other.
